MAR201

Discontinued Date: 2021.09.04

Port size: 1/8, 1/4, Max.operating pressure : 1 MPa, Proof pressure: 1.5 MPa.
Bore No. 6A, 8A
Port size 1/8, 1/4
Medium Air
Max. operating pressure 1 MPa
Proof pressure 1.5 MPa
Regulated pressure range Standard type: 0.05~0.85 MPa
Ambient temperature -5~+60℃(No freezing)
Attachment L type bracket
Option Pressure gauge (PG- 40)
Weight 190 g

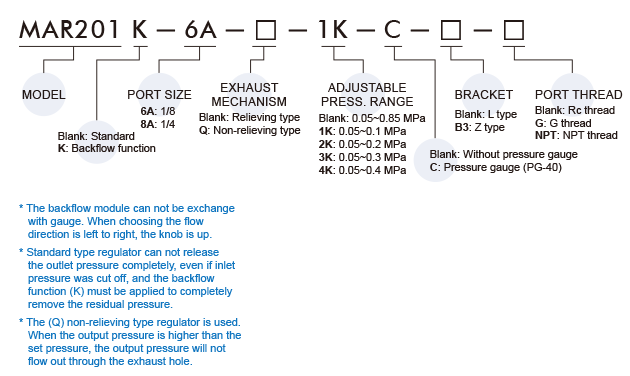

proimages/prod_orderno/E_MAR201.gif
