MCHD

Tube I.D. φ 8, 12, 16, 20 (mm).Operating pressure range 0.1~0.7 MPa. Low profile design saves space and reduces bending moments,improved accuracy with smooth operation. Improved mounting repeatability, easy positioning for mounting.
  • Low profile design saves space and reduces bending moments, improved accuracy with smooth operation.
  • Improved mounting repeatability, easy positioning for mounting.
  • Double piston construction achieves compact design with strong gripping force.
  • High rigidity and high precision with martensitic stainless steel.
  • Grooves on the body for sensor switch to be inserted into. Standard with magnet.
Acting type Double acting
Tube I.D. 8, 12, 16, 20 mm
Port size M3×0.5, M5×0.8
Medium Air
Operating pressure range φ8: 0.15~0.7 MPa
φ12, 16, 20: 0.1~0.7 MPa
Repeatability ± 0.05 mm (※)
Ambient temperature -10~+60℃ (No freezing)
Max. frequency 120 cycles / min (Short, medium stroke)
120 cycles / min (Long stroke)
Lubricator Not required
Sensor switch 2 wire: RDFE(V) ,
3 wire: NPN: RNFE(V) ; PNP: RPFE(V)
Attached bolt Tube I.D. 8, 12 : 2 pcs
Weight 65, 150, 350, 660 g (Short stroke)
79.1, 191.3, 454.2, 869 g (Medium stroke)
113.3, 291.2, 678.3, 1310.6 g (Long stroke)
Remark ※ This is the value when no offset load is applied to the finger.When an offset
   load is applied to the finger, the maximum value is ±0.15 mm due to the influence
   of backlash of the rack and pinion.

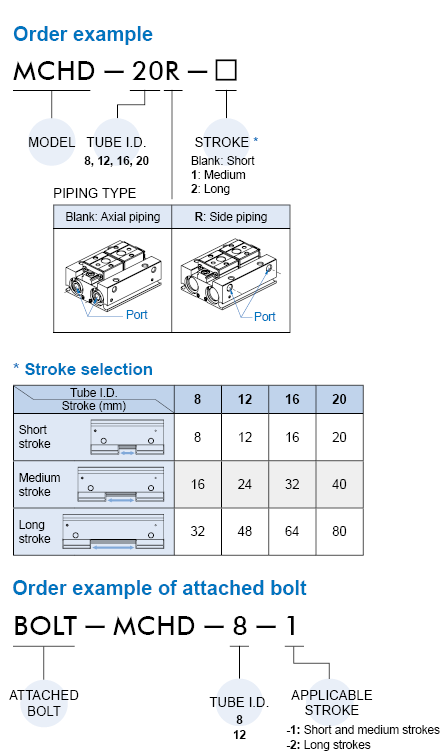

proimages/prod_orderno/E_MCHD.gif

Anonymous login Caution Procedure Demonstration

  • Anonymous Login allows you to download 2D/3D files without an account.
  • Please confirm the accurate product model number before generating the 3D model files.
  • Also check the dimensions and tolerances from our newest catalog first since the profile of the 3D models are simplified for faster generating.
  • If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
  • Simple Guide:Select the required product model number → Select "CAD download " at the left-bottom corner → Select the drawing format → Start download → Download
  • Video Guide : 2D/3D downloading procedure demonstration.
RDF Sensor switch
RDF -Voltage range : 10~28V DC, RDFE /  RNFE /  RPFE / -Voltage range : 5~30V DC, RNF /  RPF -Voltage range: 4.5~28V DC, Assembling style: MCFB, MCMJP, MCHJ, MCHS, MCHT.
