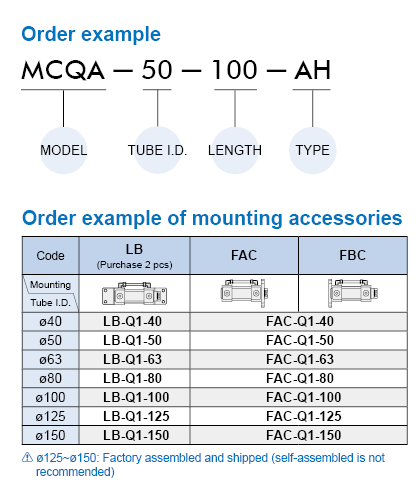

MCQA-AH

Tube I.D. φ 40, 50, 63, 80, 100, 125, 150 (mm).  Consider cylinder thrust force is about 70%(50% high speed) of theoretical force. Displacement is suggested about 50% of total volume.
  • Consider cylinder thrust force is about 70%(50% high speed) of theoretical force.
  • Displacement is suggested about 50% of total volume
  • Max. oil ascending speed is about 200mm/sec
  • ISO-VG32 or an equivalent oil is recommended.
  • Oil is feeded not exceeding 80% of total volume.
  • Unit should be installed vertically above the cylinder / actuator.
Tube I.D. (mm) 40, 50, 63, 80, 100, 125, 150
Medium ISO VG32 EQUIVALENT
Operating pressure range 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5~+60℃ (No freezing)
Available speed range 50~500 mm/sec
