MCRT

Tube I.D. φ 20, 25 (mm), Hollow shaft design for easy sensor wiring, Various grippers are available for exchange.
  • Hollow shaft design for easy sensor wiring.
  • Various grippers are available for exchange.
  • Hose-free direct connection: Air supply tunnel can connect directly without piping to assure the flexible when rotating.
  • Modular rotation and gripping system for automation applications.
  • Water repellent design for environment with cutter fluid.
  • Magnetic as standard. Can be used with embedded sensors.
Tube I.D. (mm) 20, 25
Port size Rc1/8
Rotary angle 180°
Medium Air
Operating pressure range 0.45~0.7 MPa
Ambient temperature +5~+60°C  (No freezing)
Lubrication Not required
Sensor switch RDFE(V)
Cushion Shock absorber (*1)
Max. allowable kinetic energy (J) 1.21 (*2)
Remark *1. The shock absorber is expendable. Replace when damping performance decrease.
*2.
 Excluding gripper module.

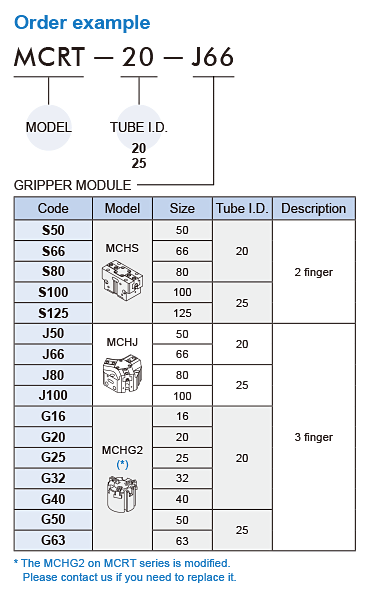

proimages/prod_orderno/E_MCRT.gif

Anonymous login Caution Procedure Demonstration

  • Video Guide : 2D/3D downloading procedure demonstration.
  • PDF file : 2D/3D downloading procedure demonstration.
  • Anonymous Login allows you to download 2D/3D files without an account.
  • Please confirm the accurate product model number before generating the 3D model files.
  • If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
  • When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
MCHS Parallel gripper (2-Finger)
Size: 50, 66, 80, 100, 125, 160, 200, 300. Compact design to ensure minimum interference while operating; robust T rail design, ensure accurate gripping. Can reach maximum torque suitable for long jaws design. Oval piston-driven design ensure maximum gripping force.

MCHJ Parallel gripper (3-Finger)
Size: 50, 66, 80, 100, 125, 160. Compact design to ensure minimum interference while operating; robust T rail design, ensure accurate gripping. Can reach maximum torque suitable for long jaws design.

MCHG2 Parallel gripper (3-Finger)
Tube I.D. φ16, 20, 25, 32, 40, 50, 63, 80, 100, 125 (mm). Through holes in body enable simple mounting.

RDFE Sensor switch
Assembling style: MAM*, MCJU, MCFB, MCMJP, MCDJ, MCSF-5, MSBE, MCRJ-S, MCRQ, MCRQ-S, MCHC-6,32,40, MCHD, MCHH, MCHU, MCHS, MCHX, MCHG2, MCHJ, MCHY, MCRT, MEQI, MESF2
