Distributed control system
FBD + LD System.Support start-up screen (108×64 pixels).Linking of 1024 function block is possible. Support full modbus protocol.
- FBD + LD System.
- Support start-up screen (108×64 pixels) Multiple communication port.
- Password protection, copy protection.
- 104 FBD integrated functions, 97 LD integrated functions, pre-tested functions. Linking of 1024 function block is possible.
- Display of message texts, adjust program parameter.
- Integrated data latch.
- Flexibly expandable up to 10000 points.
- Support full modbus protocol.
- Free PC software Mindman Editor + Mindman Utility.

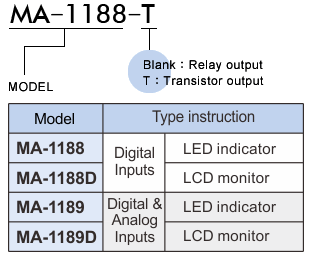

| Operation Voltage | 10~30VDC/24VDC |
|---|---|
| Inputs | 8*DI(Isolation) status low:<2vdc status="" high:="">4VDC 4*DI(Isolation) status low:<2vdc status="" high:="">4VDC |
| Outputs | 4*Isolation (Relay), 4*Isolation (Transistor) |
| Input voltage range |
Digital ON: 4~30 VDC / OFF: 2 VDC(max) ; Digital ON: 4~30 VDC / OFF: 2 VDC(max) / Analog: 0~10VDC |
| Continuous current |
Relay: 5A (with resistive load), 2A (with inductive load) Transistor: 1.75A (OCP/OTP/UVLO) |
| Input Operating Frequency | 250KHZ (Total 1000KHZ) |
| RTC/ Hold During Power Off | Yes |
| Operation Temperature | －20~＋75℃ |
| Communication | USB*1 & RS-485*2 & RS-232*1 |
| Communication Baud Rate | 2400~921600 bps |
| Degree Of Protection | IP20 |
| Base Controller IOs | 12 IOS |
| Installation | 35 mm DIN rail or Flush mounting |
| Dimension (W×H×D mm) | 76.4×118.2×40.7 mm |
| Communication Cable | CAB-MINIUSB60 or RS-485 or RS-232 |
