PLC Control System
Radio remote modules(MA-3016)
PDF
MA-3016
User guide
MA-3016
New
Discontinued Date : 2020.12.31
Q'ty :
Inquiry
Frequency control: Crystal.Operation range: up to 100 meters.Free PC software Mindman Utility.Dual watchdog timer.
Features
Specification

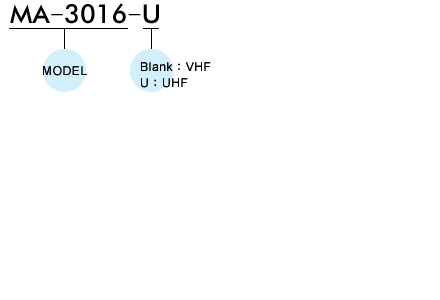

Order Example
Download
Frequency control: Crystal.
Low power indicator.
Operation range: up to 100 meters.
Supports Modbus RTU / ASCII.
Free PC software Mindman Utility.
Logic gate diagram function.
LED indicators. Dual watchdog timer.
Receiver output type
Sink (40VDC / 200mA / 3000VDC)
Receiver interface
RS-485
Receiver input power
+10 ~ +30 VDC
Receiver speed
1200~115200 bps
Receiver output LED
YES
Transmitter input power
2 AA size batteries
Operation distance
Up to 100 Meters
Operation temperature
-20~+75℃ (no freezing)
Logic gate diagram function type
11
Logic gate diagram function rule
128
Watchdog timer
System m & Comm
Size (L×W×H)
200×77×40 mm(Receiver), 120×55×25 mm(Transmitter)
Weight
142 g(Receiver), 155 g(Transmitter)
Software Download
Mindman Utility
PDF
MA-3016
