Filter
Port size: 3/8, 1/2, 3/4, Operating pressure range: 0.05~1 MPa, Proof pressure: 1.5 MPa.

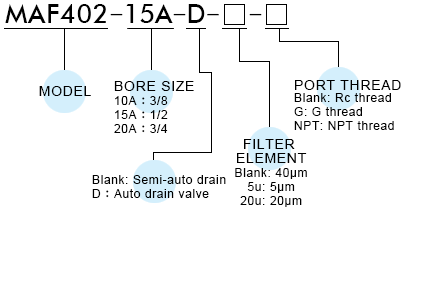

| Bore No. | 10A, 15A, 20A |
|---|---|
| Port size | 3/8, 1/2, 3/4 |
| Medium | Air |
| Operating pressure range (※) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Filter element | Standard:40 μm Option:5 μm,20 μm |
| Weight | 454 g |
| Remark | ※ Sandard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. |
