Long stroke type parallel gripper (3-Finger)
Tube I.D. φ 16, 25, 32, 40, 50, 63, 80 mm, Three-jaw parallel gripper, Doubled stroke compare with MCHG2, Same mounting holes as MCHG2, High accuracy, High gripping force.
- Three-jaw parallel gripper.
- Doubled stroke compare with MCHG2.
- Same mounting holes as MCHG2.
- High accuracy and gripping force.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|
| Tube I.D. (mm) | 16, 25, 32, 40, 50, 63, 80 |
| Stroke (mm) | 10, 12, 16, 20, 28, 32, 40 |
| Medium | Air |
| Operating pressure range | 0.1~0.6 MPa |
| Ambient temperature | －10~＋60℃ (No freezing) |
| Max.operating frequency | 30~120 (c.p.m) |
| Lubrication | Not required |
| Repeatability (±mm) | ±0.01 |
| Effective force (N.m) at (0.5 MPa) | External: 1.4(0.31)~50(11.2) Internal: 1.6(0.36)~52.5(11.8) (※) |

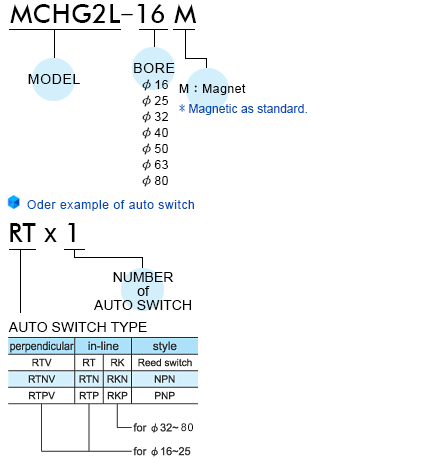

| Sensor switch | RT |
| Weight | 100~2880 g |
| Remark | (※) Open and closed diameter values apply for external gripping of work pieces. |
