Digital Flow and Pressure Sensor
IP40, Flow and pressure 4 digit, 7 segment dual LCD display, 8 digit accumulated flow rate display, Real-time monitoring, RS485 Modbus control.
- Flow and pressure 4 digit, 7 segment dual LCD display.
- 8 digit accumulated flow rate display.
- Real-time monitoring.
- RS485 Modbus control.

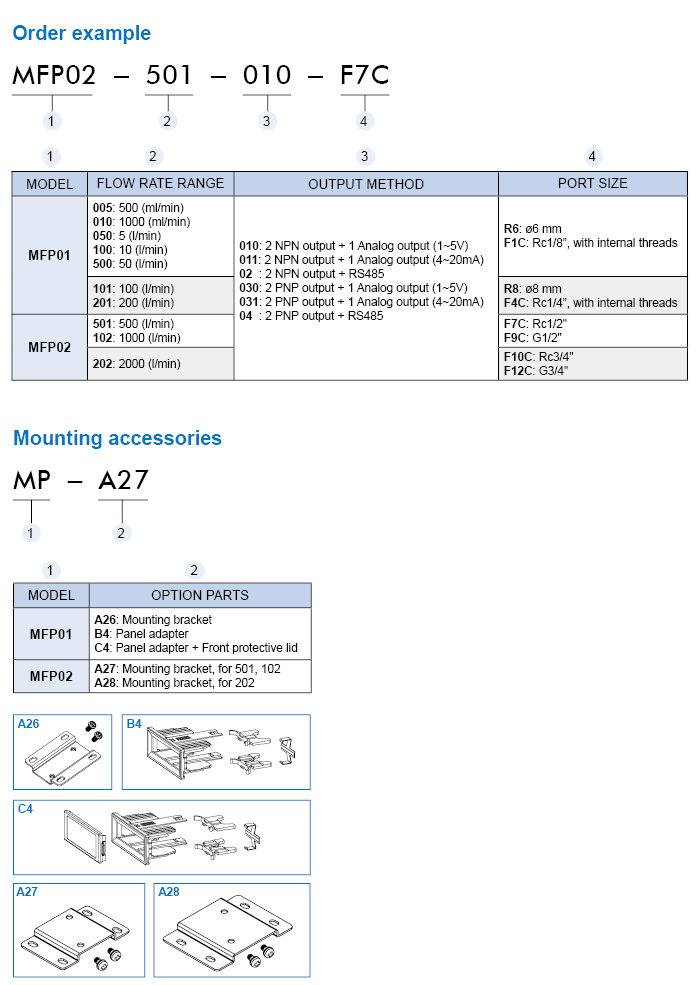

| Fluid | Dry air, N2, Non-corrosive / Non-flammable gas |
|---|---|
| Flow Pressure (Sensor element) |
Measured flow rate range: 005: 0 ~ 500 mL/min, 010: 0 ~ 1000 mL/min, 050: 0 ~ 5 L/min, 100: 0 ~ 10 L/min, 500: 0 ~ 50 L/min, 101: 0 ~ 100 L/min, 201: 0 ~ 200 L/min Flow direction: Unidirection Rated pressure range: -90 ~ 800 kPa |
| Pressure Display | Display range: -100 ~ 1000 kPa |
| Flow Pressure (Accuracy) |
Guaranteed range: 2 ~ 100 % F.S. Guaranteed range: 0 ~ 100 % F.S. |
| Response time (Switch output) |
Flow: 800 ms ( 50 ms, 80 ms, 120 ms, 200 ms, 400 ms, 1500 ms selectable) Pressure: 2.5 ms ( 25 ms, 100 ms, 250 ms, 500 ms, 1000 ms, 1500 ms selectable) |
| External input | Non-voltage input, < 0.4 V, ≥ 30 ms |
| Communication interface | RS-485 |
| Power | Power supply voltage: 12 ~ 24 V DC ± 10 %, Ripple ( P-P ) ≤ 10 % Current consumption: ≤ 50 mA |
| Lead wire | ø4 Oil-resistance cable ( PVC ) - 26 AWG ( 0.15 mm2 ) - 6 cores |
| Weight (with 2 meter lead wire) | Approx. 107 g ( ø6 port ) ; Approx. 110.5 g ( ø8 port ) |
