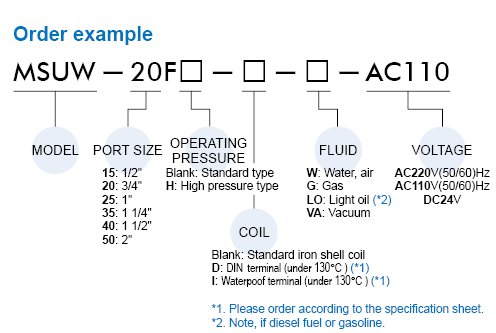

MSUW-F

2-WAY normally closed solenoid valve.Available fluid: Water, air & light oil.
Specification
  • MSUW-F series is direct multiplex acting, connected diaphragm, normal close.
  • Able to be operated under low pressure.
  • Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C) for seal plug and diaphragm.
  • Flange: JIS 10K (Option: ANSI 150LB or PN-16)
  • AC voltage tolerance: ±10%
  • DC voltage tolerance: ±1%
Caution
  • Before pipelining, the pipe line must be very clean without any contaminants or impurity.
  • To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
  • It should be installed horizontally; vertical installation is not advisable.
Not for fluid of
  • Liquid when heat, solid when cool.
  • Corrosive fluid.
  • Viscosity over 20 cst.
Body Stainless steel
Coil Special copper wire (H)
Tube Stainless steel
Fixed steel Stainless steel
Spring Stainless steel
Plug NBR
Diaphragm NBR
