2/2 way diaphragm valve

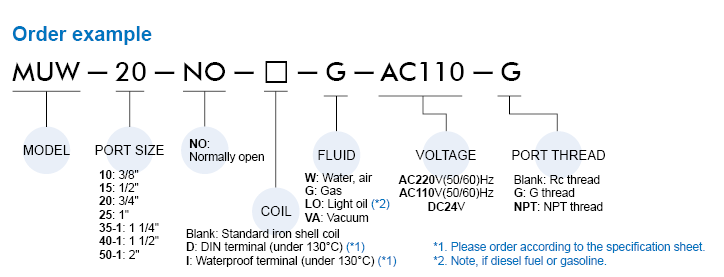

2-WAY normally open solenoid valve.Available fluid: Water, air, gas & vacuum.
- Direct and multiplex acting, connected diaphragm, normal open.
- Can be operated directly under low pressure.
- Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C) for seal plug and diaphragm.
- AC voltage tolerance: ±10%. DC voltage tolerance: ±1%
- Before pipelining, the pipe line must be very clean without any contaminants or impurity.
- To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
- It should be installed horizontally; vertical installation is not advisable.
| Body | Forge brass / Cast bronze |
|---|---|
| Coil | Special copper wire (H) |
| Tube | Stainless steel |
| Spring | Stainless steel |
| Core | Stainless steel |
| Plug | NBR, viton, silicon |
| Diaphragm | NBR, viton, silicon |
