High-Precision Electro-Pneumatic Regulator
The MAER200 Electro-Pneumatic Regulator precisely converts electrical control signals into stable pneumatic pressure, enabling stepless pressure regulation for compressed air systems. It is ideal for precision automation equipment and smart manufacturing applications. Equipped with an advanced microprocessor-based PID control system, the MAER200 delivers fast response, stable performance, and high-accuracy pressure regulation, improving machine repeatability and process stability.
The regulator supports multiple control signal options and provides analog monitoring output as well as NPN/PNP switch outputs, allowing seamless integration with PLCs, HMIs, and various industrial control systems. With a maximum flow rate of 1,500 L/min, IP65 protection, and CE certification, it is designed to perform reliably in demanding industrial environments.
In addition, the MAER200 can be modularly integrated with the MA302 Series Air Preparation Units, simplifying piping design and multi-stage pressure control systems.
Applications: Semiconductor equipment, electronics manufacturing, automated production lines, precision machinery, packaging equipment, robotic systems, and smart manufacturing.
- High-precision pressure control with advanced microcomputer PID technology.
- Stepless air pressure regulation proportional to electrical input signals.
- Simplifies complex pneumatic piping and multi-pressure control systems.
- Fast response and stable output for critical automation processes.
- High flow capacity up to 1500 L/min for demanding industrial applications.
- Easily integrates with PLC, HMI, and automated control systems.
- Compatible with MA**302 series assemblies for flexible installation.
- IP65-rated protection for reliable operation in harsh environments.
- CE certified to meet international safety and quality requirements.
- Reduces maintenance costs, improves productivity, and enhances process consistency.

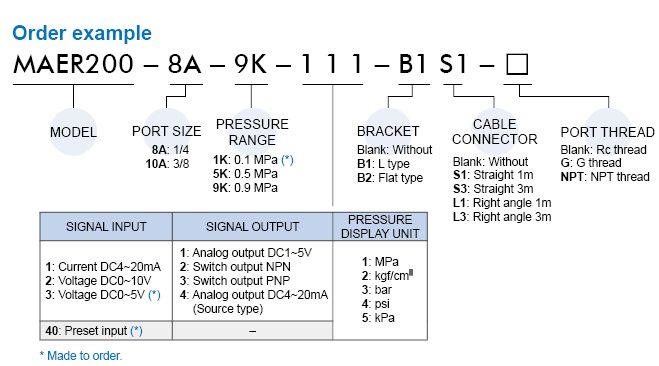

| Pressure range | 1K, 5K, 9K |
|---|---|
| Bore No. | 8A, 10A |
| Port size | 1/4, 3/8 |
| Medium | Air |
| Proof pressure | 1K: 0.3 MPa 5K, 9K: 1.5 MPa |
| Ambient temperature | +5~+50°C (No condensation) |
| Min. supply pressure | Set pressure+0.1 MPa |
| Max. supply pressure | 1 MPa |
| Setting pressure range | 0.005~0.9 MPa |
| Power supply | Connector: M12 plug, 4-pin, A-coded Voltage: DC24V±10% Current: DC24V: 80mA or less |
| Signal input | Current type: DC4~20 mA Voltage type: DC0~5V, DC0~10V Preset input: 4 points |
| Input impedance | Current type: ≤ 400Ω Voltage type: Approx. ≤ 50kΩ Preset type: Approx. ≤ 1000kΩ |
| Signal output (Monitor output) |
Analog output: Current type DC4~20mA (Load impedance 1kΩ or less) Analog output: Voltage type DC1~5V (Load impedance 750Ω or above) Switch output: NPN, PNP: Max. 24V, 160mA |
| Linearity | 1K: Within ±2% (F.S.) 5K, 9K: Within ±1% (F.S.) |
| Hysteresis | Within 1% (F.S.) |
| Repeatability | Within ±1% (F.S.) |
| Sensitivity | Within 0.4% (F.S.) |
| Temperature characteristics | Within ±0.2% (F.S.)/°C |
| Output pressure display | Precision: ±2% F.S. ±1 digit Min. unit: MPa:0.001, kgf/cm2:0.01, bar:0.01, psi:0.1, kPa:1 |
| Enclosure | Equivalent to IP65 |
| Weight | Main: 360 g; Bracket: Approx. 86g(B1) , 80g(B2); Cable connector: Approx. 55g(1m) , 130g(3m) |
