MAL900 is useful to lubricate air tools, cylinders, valves, air motors and other air driven devices.

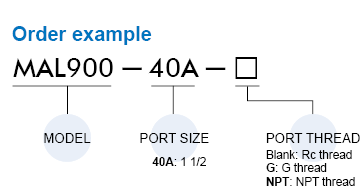

Bore No. 40A
Port size 1 1/2
Medium Air
Max. operating pressure 1.75 MPa
Ambient temperature 0~+80℃ (No freezing)
Lubricating oil capacity 1000 c.c
Min. flow for oil drip 204 l /min
Recommended lubricating oil Turbine oil ISO-VG32
Standard nominal flow rate(※) 12000 l/min
Weight 1766 g
Remark Flow is at pressure P=0.6 MPa with purssure drop△P=0.1 MPa.
