MCBQI3 Rod Locking Cylinder | Bidirectional braking, ISO 15552 compliant
Tube I.D.φ 32, 40, 50, 63, 80, 100 mm. Multi-specification : There are six specifications. Application to hold state in the stroke range.
- Multi-specification
MCB unit is applicable in 9 different bore sizes (ø32~100), piston rod can be locked at any position within the stroke range. - Brake function
Brake function is applicable in both directions. - Non lubrication
No lubricant is required for the piston rod. Utilize oil-containing alloys and special bearing bush to eliminate the necessity of lubrication on piston rod. - High quality long service life
Hard anodized aluminum tube and stainless steel tube allows cylinder to have better corrosion and abrasion resistance. - ISO 15552 standard specification
Conform to ISO 15552 standards. Unified design, most parts and mounting accessories are interchangeable. - Cylinder mountings
Available with a comprehensive selection of mountings for fixed or flexible installation.

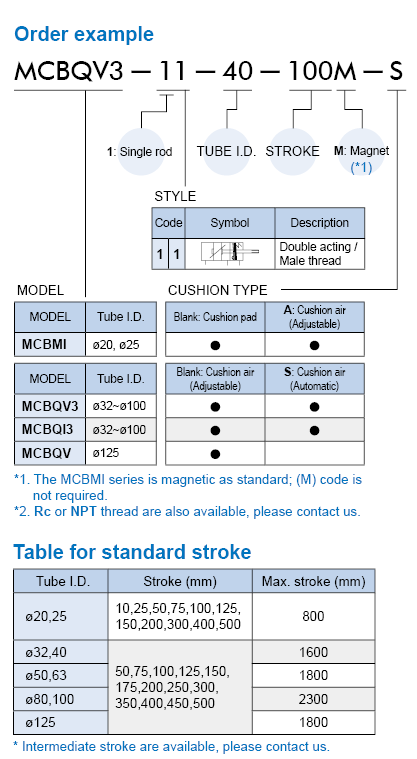

| Tube I.D. (mm) | 32, 40, 50, 63, 80, 100 |
|---|---|
| Medium | Air |
| Operating pressure range | 0.3~0.6 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Min. working pressure | 0.3 MPa |
| Available speed range | 50~500 mm/sec |
| Locking mode | Secure locking of piston rod in any position |
| Lock retention forces | 790~7700 N |
| Sensor switch | RDT, RQT, RCI |
