Parallel gripper (3-Finger)
Back
Home
Product Information
Discontinued Products
Grippers
Parallel gripper (3-Finger)(MCHG)
PDF
MCHG
Model selection
Technical data
MCHG
New
Discontinued Date 2018.08.09
Q'ty :
Inquiry
Body diameter: φ 50, 63, 125, 160 (mm). Compact, yet rugged design enables high clamping force from the jaws.
Features
Specification

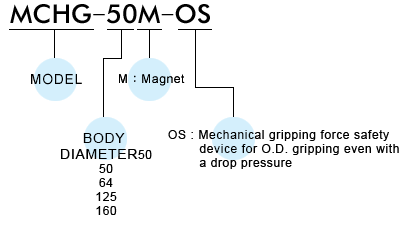

Order Example
Video
Accessory
Compact, yet rugged design enables high clamping force from the jaws.
Body manufactured from high tensile, anodised aluminium giving good resistance to corrosion.
Available with sensors.
Available with sprung loaded sensor plate.
Low overall height with long stroke on jaws.
Acting type
Double acting
Body diameter (mm)
50, 64, 125, 160
Stroke
8, 12, 16, 20, 26, 32
Medium
Air
Operating pressure range
0.1~0.6 MPa
Ambient temperature
-10~+60℃ (No freezing)
Lubrication
Not required
Repeatability (±mm)
± 0.05
Sensor switch
RH:Reed switch, RHN:NPN, RHP:PNP
Weight
0.23~4.7 kg
RH
Sensor switch
Assembling style: MCHG, MCHQ, MCHGH, MCHGF, MCRH.
