MCHGF

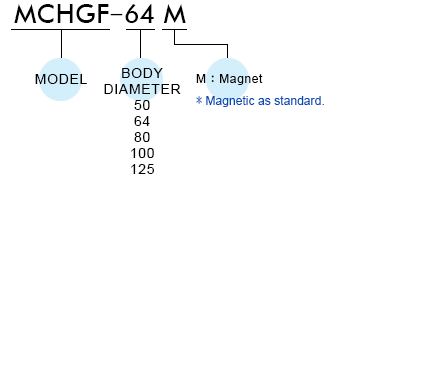

Body diameter: 50, 64, 80, 100, 125 (mm). Positioning of Square work pieces.The 4-jaw grippers is designed in lower height with long stroke.
  • Positioning of Square work pieces.
  • The housing: high-tensile aluminum and special hard-coated.
  • The 4-jaw grippers is designed in lower height with long stroke.
Acting type Double acting
Body diameter (mm) 50, 64, 80, 100, 125
Stroke 8, 12, 16, 20, 26
Medium Air
Operating pressure range 0.2~0.8 MPa
Ambient temperature -10℃~+60℃ (No freezing)
Lubrication Not required
Repeatability (±mm) 0.05
Sensor switch RH: Reed switch, RHN: NPN, RHP: PNP
Weight 0.24, 0.42, 0.85, 1.51, 2.45 kg
Remark Maintenance: Re-Lubrication after appr. 1.5 million cycles recommended.

RH Sensor switch
Assembling style: MCHG, MCHQ, MCHGH, MCHGF, MCRH.
