Parallel gripper (3-Finger)
Back
Home
Product Information
Discontinued Products
Grippers
Parallel gripper (3-Finger)(MCHGH)
PDF
MCHGH
Model selection
Technical data
MCHGH
New
Discontinued Date : 2019.03.01
Q'ty :
Inquiry
Body diameter: 64, 80, 100, 125, 160 (mm). Through center hold for workpiece feed.Body manufactured from high tensile, anodised aluminium giving good resistance to corrosion.
Features
Specification

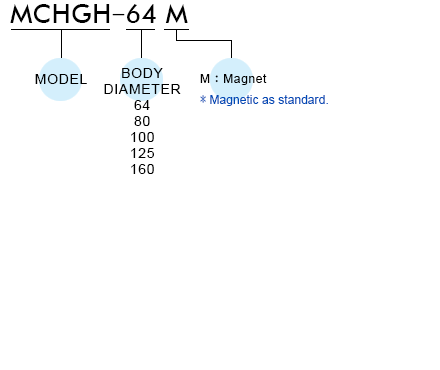

Order Example
Video
Accessory
Through center hold for workpiece feed.
Compact, yet rugged design enables high clamping force from the jaws.
Body manufactured from high tensile, anodised aluminum giving good resistance to corrosion.
Available with sensors.
Acting type
Double acting
Body diameter (mm)
64, 80, 100, 125, 160
Stroke
8, 12, 16, 20, 26
Medium
Air
Operating pressure range
0.1~0.6 MPa
Ambient temperature
-10℃~+60℃ (No freezing)
Lubrication
Not required
Repeatability
±0.05 mm
Sensor switch
RH: Reed switch, RHN: NPN, RHP: PNP
Weight
0.52, 0.82, 1.3, 2.1, 3.8 kg
Remark
Maintenance: Re-Lubrication after appr. 1.5 million cycles recommended.
RH
Sensor switch
Assembling style: MCHG, MCHQ, MCHGH, MCHGF, MCRH.
