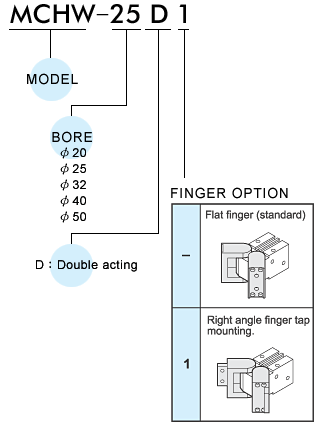

MCHW

Tube I.D. φ 20, 25, 32, 40, 50 (mm). Extremely compact design saves operating space. Synchronisation of gripping fingers.
  • Extremely compact design saves operating space.
  • Synchronisation of gripping fingers.
  • Dust seals protect all internal parts from ingress of dirt.
  • Proximity and reed switches can be used with this unit.
Acting type Double Acting
Tube I.D. (mm) 20, 25, 32, 40, 50
Medium Air
Operating pressure range 0.15~0.7 MPa
Ambient temperature -10~+60℃ (No freezing)
Max.operating frequency 20: 60 (c.p.m), 25~50: 30 (c.p.m)
Lubrication Not required
Repeatability (±mm) ±0.2
Effective force (N.m) at (0.5 MPa) 0.030~0.827 N.m
Operating angle (both sides) Opened side:180°, Closed side:-4°~ -6°
Sensor switch RK:Reed switch, RKN:NPN, RKP:PNP
Weight 0.3~ 5.15 kg

RK Sensor switch
Assembling style: MCHK, MCHX, MCHW.
