End lock cylinders
Tube I.D. φ 63,80 (mm). Conformance to ISO 15552 specification. Unified design, most parts of each type are interchangeable among each other.
- Non-lubrication
Special housing and bushing enables self lubrication of piston rod. - High quality long service life
Hard anodised aluminium cylinder tubes offer a high resistance to corrosion and low internal friction. - ISO 15552 standard specification
Conforms to ISO 15552 specification enabling worldwide interchangeability.

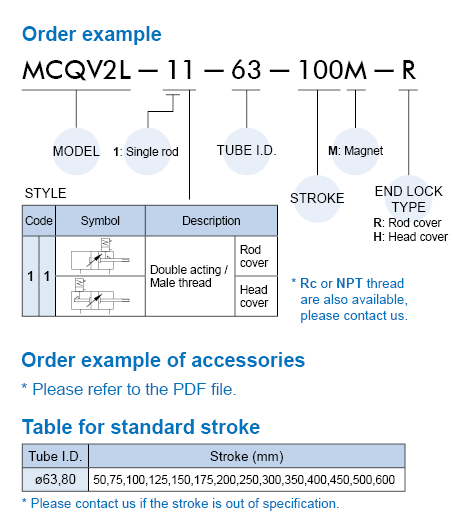

| Tube I.D. (mm) | 63, 80 |
|---|---|
| Medium | Air |
| Operating pressure range | 0.15~1 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Available speed range | 50~500 mm/sec |
| Holding force | Max. 2710 N, Max. 3690 N |
| Backlash | 1mm or less |
| Sensor switch | RCA |
| Sensor switch holder | HV2, HV3 |
