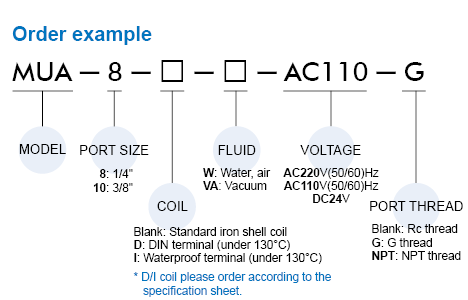

MUA

Normally closed. Available fluid: Air, water.
  • MUA series is direct acting, conductive and normal close.
  • Able to be operated under no differential pressure.
  • Applied to the equipment need to exhaust after power-off.
  • Acceptable for customization : Viton (130°C) for seal plug.
  • AC Voltage tolerance: ±10%. DC Voltage tolerance: ±1%.
  • Before pipelining, the pipe line must be very clean without any contaminants or impurity.
  • To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
  • It should be installed horizontally; vertical installation is not advisable.
Body Forge brass
Coil Special copper wire (H)
Tube Stainless steel
Spring Stainless steel
Core Stainless steel
Plug NBR
Diaphragm NBR
