Solenoid valve
Body width: 10 mm, Port size: M5 × 0.8, Operating pressure range: 0.15~0.7 MPa, Proof pressure: 1 MPa, Flow: 255 l/min.

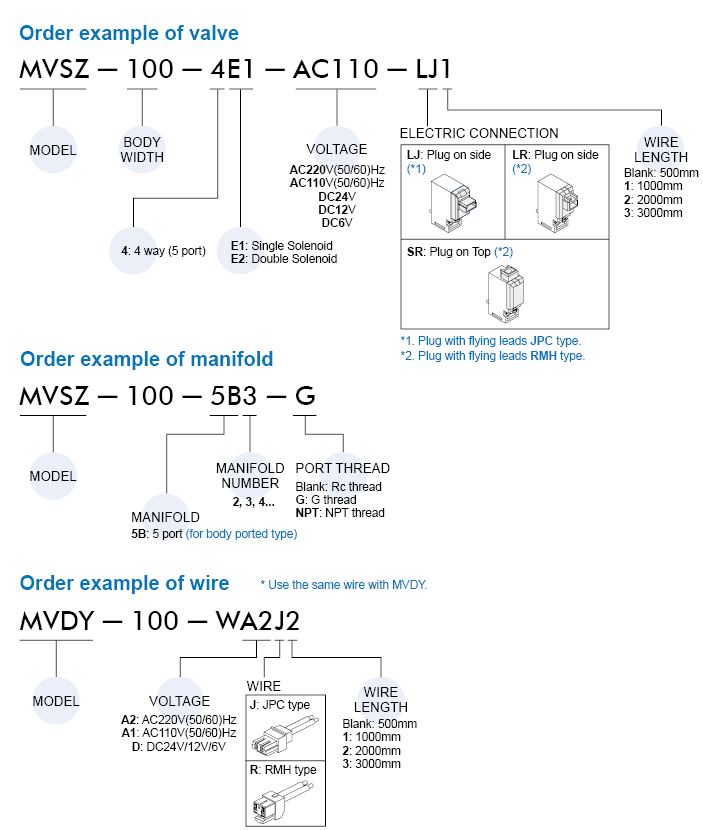

Caution
- Don't continuously energize for over 2 hours.
- The total energizing time of a day is not allowed to exceed the total non-energizing time even if it is intermittent energizing.
| Bore No. | M5 |
|---|---|
| Port size | M5×0.8 |
| No. of port | 5 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0.15~0.7 MPa |
| Proof pressure | 1 MPa |
| Flow | 255 l/min |
| Effective orifice | 4.7 mm2 (0.26 Cv) |
| Response time | 17 ms |
| Max. operating frequency | 5 Hz |
| Ambient temperature | ＋5~＋50℃ |
| Voltage | AC110V, AC220V (50/60)Hz, DC6/12/24V |
| Power consumption | AC=1.6 / 2.5VA, DC=0.55W (LED indicator) |
| Available voltage range | ±10% |
| Insulation class | B class |
| Weight | 40 g, 53 g |
