Filter
Port size: 20A, 25A, Operating pressure range:0.05~1.5 MPa, Proof pressure: 2 MPa, PC, Nylon, Metal bowl.

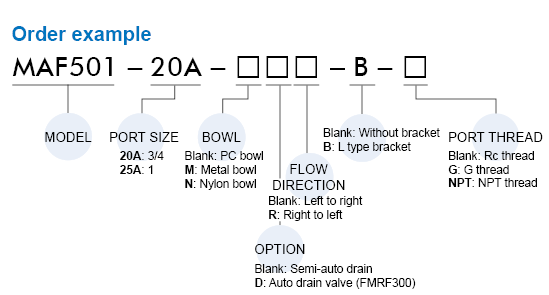

| Bore No. | 20A, 25A |
|---|---|
| Port size | 3/4, 1 |
| Medium | Air |
| Operating pressure range (※) | Nylon bowl, PC bowl: 0.05~1 MPa Metal bowl: 0.05~1.5 MPa |
| Proof pressure | Nylon bowl, PC bowl: 1.5 MPa Metal bowl: 2 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Filter element | 40 μm |
| Drain capacity | Nylon bowl, PC bowl: 75 cm3, Metal bowl: 70 cm3 |
| Weight | PC, Nylon bowl: 1180g / Metal bowl: 1300g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15 ~ 1 MPa. |
