Port size: 1/4, 3/8, 1/2, Operating perssure range: -100~0 kPa, Proof pressure: 0.5 MPa, Weight: 333 g.
- Remove water droplets and pollutants to ensure the quality of the vacuum gas supply system.
- The maximum flow rate is 240 L/min when the initial pressure loss is 4 kPa.
- Nylon cup body to adapt to a variety of environment needs.

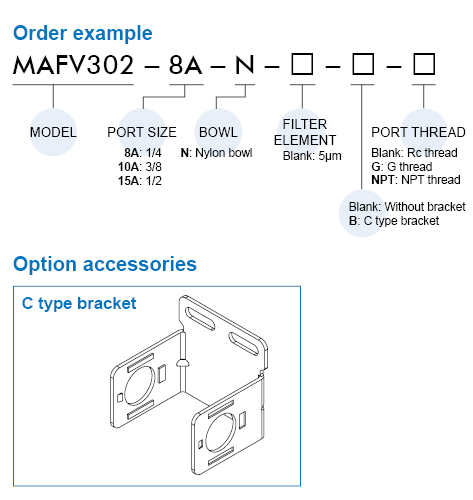

Bore No. |
8A, 10A, 15A |
Port size |
1/4, 3/8, 1/2 |
Medium |
Air |
Operating perssure range |
-100~0 kPa |
Proof pressure |
0.5 MPa |
Ambient temperature |
–5~+60°C (No freezing) |
Drain capacity |
35 cm3 |
Filter element |
5 μm |
Weight |
333 g |
