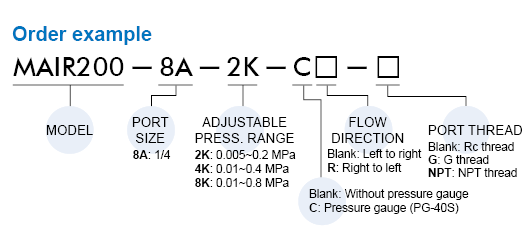

MAIR200

Port size: 1/4, Operating pressure range: 1 MPa, Proof pressure: 1.5 MPa

Bore No. 8A
Port size 1/4
Medium Air
Max. Operating pressure range 1 MPa
Min. operating pressure Setting pressure+0.05 MPa
Proof pressure 1.5 MPa
Regulated pressure range 2K: 0.005~0.2 MPa,4K: 0.01~0.4 MPa,8K: 0.01~0.8 MPa
Sensitivity Within 0.2% of full span
Repeatability Within ±0.5% of full span
Air consumption (※) 4.4 l/min(ANR)of full span
Ambient temperature -5~+60℃ (No freezing)
Attachment Bracket
Option Pressure gauge (PG-40S)
Weight 300 g
Remark ※ For supply pressure 1 MPa.
