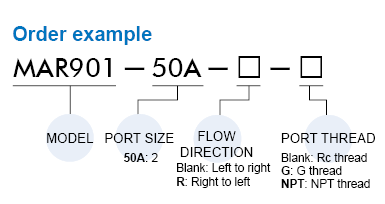

MAR901

MAR901 (Pilot operated)  can be installed at any point in the compressed air system without regard to accessibility ensuring accurate pressure regulation over a wide range of air flows upto 56640 l/min.
Bore No. 50A
Port size 2
Medium Air
Max. operating pressure 3.1 MPa
Regulated pressure range Upto 1.75 MPa(with the help of a pilot regulator)
Ambient temperature 0~+80℃(No freezing)
Attachment Pressure gauge(PG-50)
Standard nominal flow rate(※) 59000 l/min
Weight 3055g
Remark Flow is at 1 MPa supply pressure and 0.1 MPa purssure drop of 0.6 MPa of secondary pressure.
