Oval micro-cylinder
Tube I.D. φ 8, 10, 12, 16, 20, 25 (mm), Flat design enables non rotation of rod. ISO standard dimensions. Magnetic as standard.
- Large range 8mm bore ~ 25mm bore.
- Flat design enables non rotation of rod.
- ISO standard dimensions.
- Magnetic as standard.

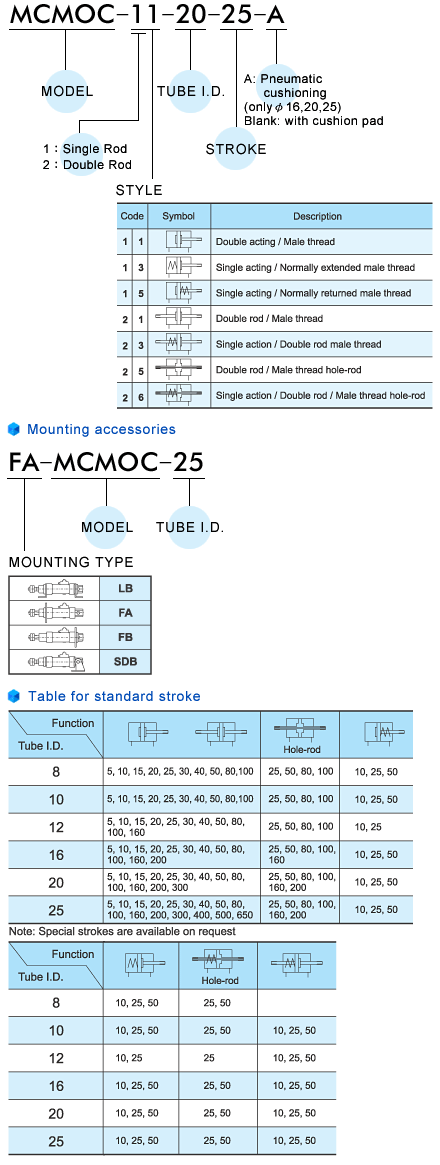

| Acting type | Double acting / Single acting |
|---|---|
| Tube I.D. (mm) | 8, 10, 12, 16, 20, 25 |
| Port size | M5×0.8，G1/8 |
| Medium | Filter air 50μm lubricated or not |
| Operating pressure | Double acting :0.08~1 MPa， Single acting : Push 0.23~1 MPa，Pull 0.2~1 MPa |
| Ambient temperature | -10℃~+70℃ (No freezing) |
| Speed | 0.6m/sec， 0.7m/sec |
| Cushioning of end stroke | Elastic by polyurethan internal stop built into piston |
| Non-rotating accuracy | 8,10 : ±3.5°, 12~25 : ±2.5° |
| Pneumatic cushioning | 8, 10, 12: No, 16, 20, 25: Yes (option) |
| Sensor switch | RCS |
| Sensor switch band | BK-81 |
