Mini. Electric Cylinder
Size：16, 20. Apply for motor 20, 25. Mix. stroke 100, 100 mm, Mix. speed 50, 100, 400 mm/s.
| Size | 16, 20 |
|---|---|
| Position repeatability | ±0.02 mm |
| Lead | 16: 2 mm 20: 2, 8 mm |
| Maximum speed *1 | Motor SM/ BM: ≤50~≤400 mm/s Motor OBM: ≤50~≤200 mm/s |
| Work load *2 | Horizontal : 3 kg (16), 1.5, 6 kg (20) Vertical : 0.8 kg (16), 0.8, 1.8 kg (20) |
| Pushing force *1, 3, 4 | 18~195 N |
| Stroke | 16: 30, 50, 75 mm 20: 30, 50, 75, 100 mm |
| Encoder | Incremental A/B/Z (4000PPR) |
| Motor size | 16: □ 20 mm 20: □ 25 mm |
| Rated voltage | DC 24V±10% |
| Remark |

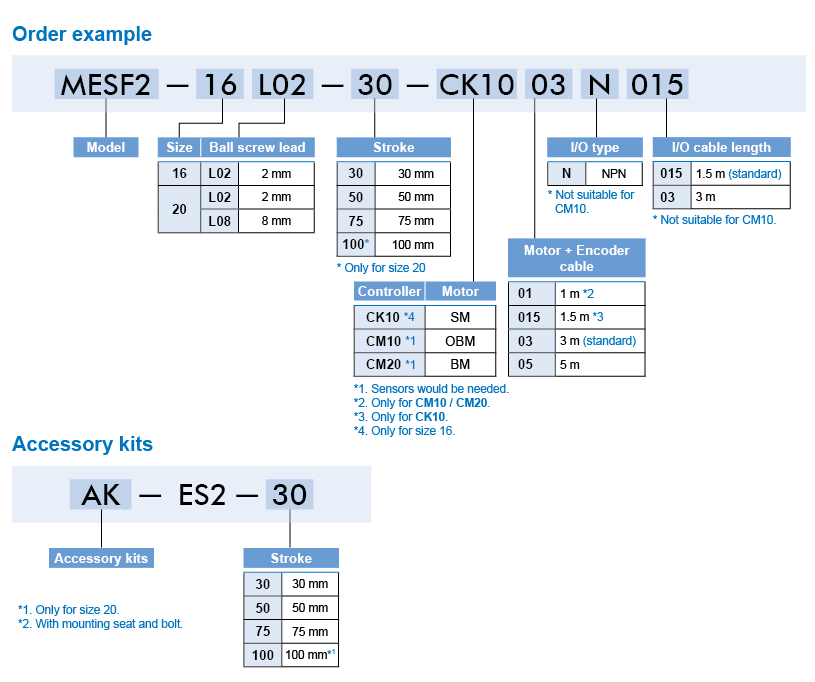

*1. The speed and force may change depending on the cable length, load, stroke and mounting conditions. *2. The maximum load capacity decreases as the speed increases. *3. The accuracy of pushing force is ± 20%. *4. Pushing force for MESF2 is from 30% to 90%.
|
CK10 Driver
CM20 Driver Please log-in
- Register
- Login In
- Anonymous login Caution
- Error Report
Anonymous login Caution Procedure Demonstration
- Video Guide ： 2D／3D downloading procedure demonstration.
- PDF file : 2D／3D downloading procedure demonstration.
- Anonymous Login allows you to download 2D/3D files without an account.
- Please confirm the accurate product model number before generating the 3D model files.
- If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
- When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
CK10 Electric Cylinder Controller
Support RS-485 communication (Modbus RTU), Support single / double pulse control, Support Position Table motion control function.
CM10 Electric Cylinder Controller
Support single / double pulse control, Open loop, Sensors would be needed for origin return.
