MF01.MF02

Display can be vertically inverted. To set and watch monitor easily, 3-Color & 7 segment LCD display, 8 digit accumulated flow rate display, Real-time monitoring.
  • Display can be vertically inverted, To set and watch monitor easily.
  • 3-Color & 7 segment LCD display.
  • 8 digit accumulated flow rate display.
  • Real-time monitoring.
  • RS-485 Modbus RTU.
Fluid Dry air, N2, Non-corrosive / Non-flammable gas
Sensor Element-Flow Measured flow rate range:0 ~ 200 L/min
Display See PDF
Accuracy See PDF
Switch output See PDF
Power Power supply voltage:12 ~ 24 V DC ± 10 %, Ripple ( P-P ) ≤ 10 %
Current consumption:≤ 50 mA
Lead wire ø4 Oil-resistance cable ( PVC ) - 26 AWG ( 0.15 mm2 ) - 6 cores

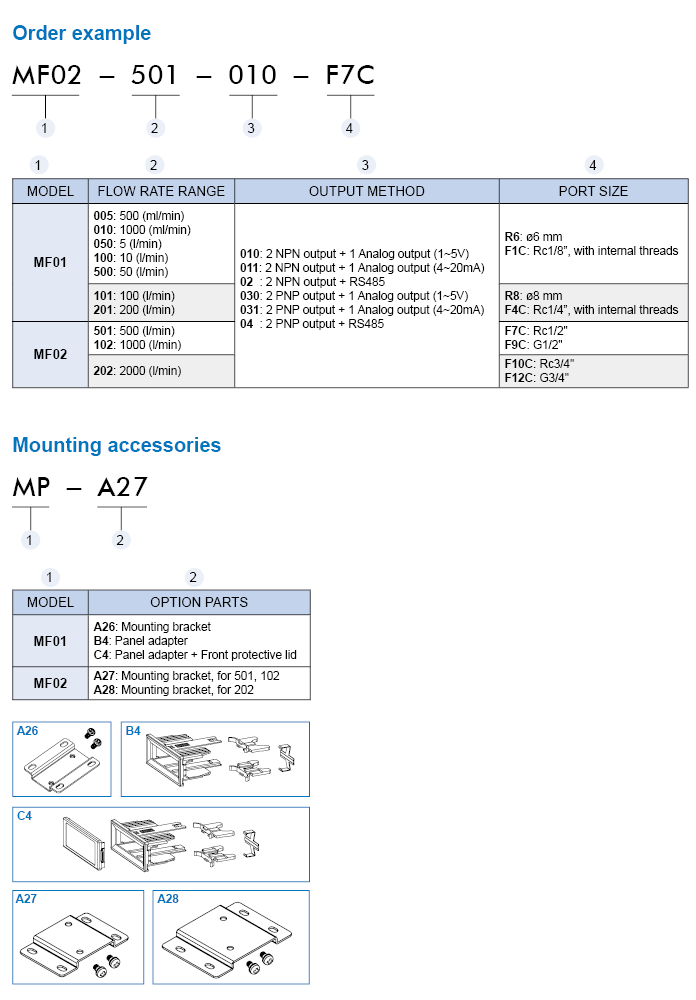

proimages/prod_orderno/E_MF01.gif
