Hydraulic lever-type cylinders
Tube I.D.:25, 32, 40, 50, 63 (mm), The clamp structure of this model is based on the lever principle; it will be tightened as piston putting out. The clamping force is stromger than the swing clamp cylinder's.
- Lever type clamp cylinder gives high clamping force.

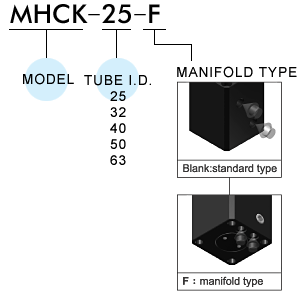

- Manifold or freestanding model available.
- Carbon steel body ensures long life of unit.
- Ideal for use on CNC machine tools where repetitive clamping is required.
| Tube I.D. (mm) | 25, 32, 40, 50, 63 |
|---|---|
| Piston-rod (mm) | 18, 20, 22.4, 28, 35 |
| Standard stroke (mm) | 25~40 |
| Max. operating pressure | 7 MPa |
| Operating pressure range | 0.5~5 MPa |
| Clamping force (3 MPa) | 1296 N ~ 6471 N |
