Pneumatic-swing clamp cylinders
Tube I.D. φ12, 16, 20, 25, 32, 40 (mm). No additional bracket is required while mounting. Selectable clamping lever, include single side type and double side type.
- No additional bracket is required while mounting.
- Selectable clamping lever, include single side type and double side type.
- Magnetic as standard.
| Acting type | Double acting |
|---|---|

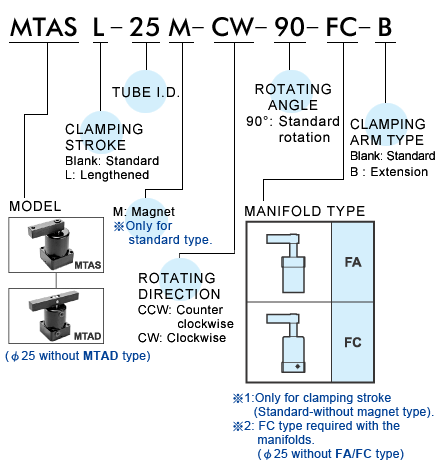

| Tube I.D. (mm) | MTAS (Single side clamping arm):25,32,40,50,63 , MTAD (Double sides clamping arm):32,40,50,63 |
| Medium | Filtered air with or without lubrication |
| Operating pressure range | 0.1~1 MPa |
| Max. pressure | 1.47 MPa |
| Material of cylinder barrel | Anodised aluminum alloy |
| Standard angle of rotation | 90°±2°(Angle of 0°, 45°and 60°are optional) |
| Rotating direction | Clockwise or counter clockwise |
| Sensor switch | LN40R |
