2/2 way piston valve
2-way normally closed solenoid valve.Available fluid: Water, air, steam & heavy oil.

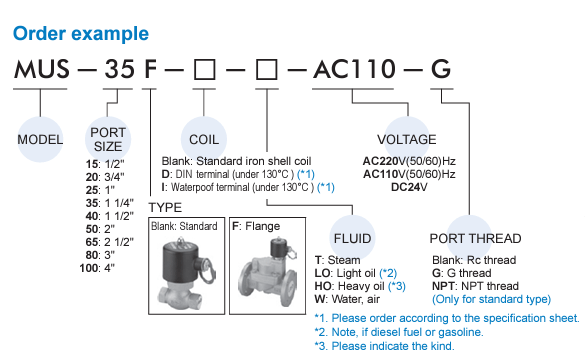

- MUS/MUS-F series is multiplex-drive, piston guide, connected normal close.
- Acceptable for customization Viton (130°C) , Silicone (130°C) and EPDM (130°C) for seal plug.
- Flange: JIS 10K (Option: ANSI 150LB or PN-16).
- AC voltage tolerance: ±10%. DC voltage tolerance: ±1%
- Min pressure to open 0.05 MPa (over 1 1/4" is 0.1 MPa).
- Before pipelining, the pipe line must be very clean without any contaminants or impurity.
- To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.
- It should be installed horizontally; vertical installation is not advisable.
| Body | Cast bronze |
|---|---|
| Coil | Special copper wire (H) |
| Piston | Brass |
| Tube | Stainless steel |
| Spring | Stainless steel |
| Core | Stainless steel |
| Plug | PTFE+15%GF |
| Bonnet / nut | PTFE |
