MVSF-100

Discontinued Date: 2021.09.04

Inquiry
Low power consumption: 1.2W. Compact design. Large flow capacity: Cv factor for this series is 1.25 times larger than conventional valve with the same body width. Quick response time: 12ms.
  • Low power consumption: 1.2W
  • Compact design, Large flow capacity
  • Cv factor for this series is 1.25 times larger than conventional valve with the same body width.
  • Quick response time: 12ms
Caution
    • Don't continuously energize for over 2 hours.
    • The total energizing time of a day is not allowed to exceed the total non-energizing time even if it is intermittent energizing.

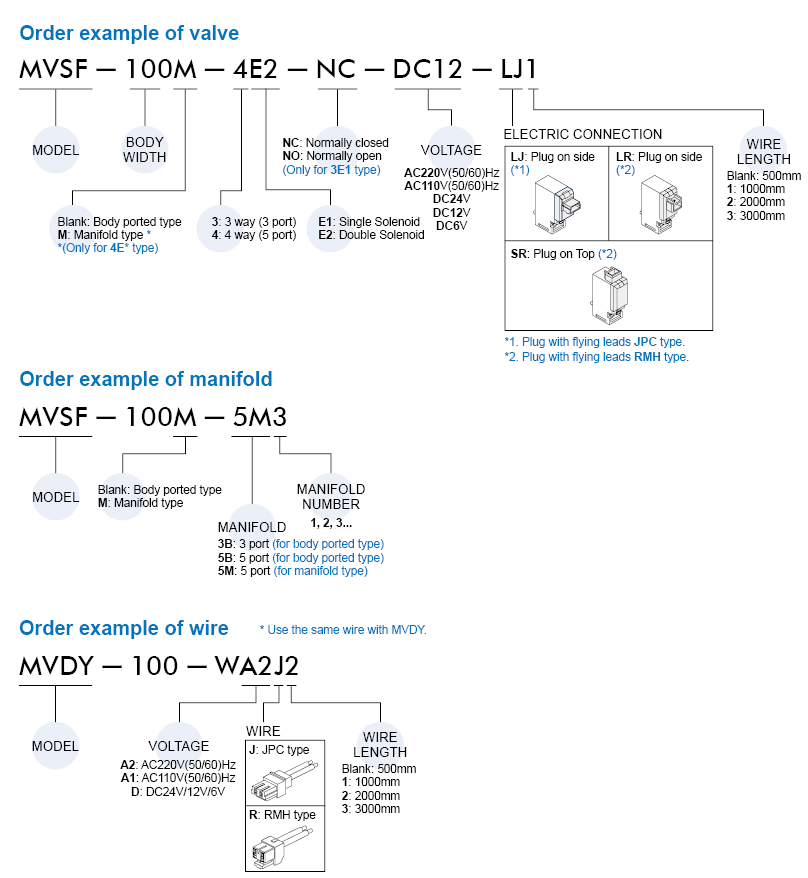

    Bore No. M3
    Port size M3×0.5
    No. of port 3,5
    No. of position 2
    Medium Air
    Operating pressure range 0.15~0.7 MPa
    Effective orifice mm2(Cv) P→A/B: 1.0 (0.06)
    Response time 12 ms
    Max. operating frequency 5 Hz
    Ambient temperature +5~+50℃
    Lubrication Not necessary
    Voltage AC110, AC220V(50/60)Hz, DC6/DC12/DC24V
    Power consumption AC=1.6 / 2.5VA,DC=0.55W (LED indicator)
    Available voltage range ±10%
    Insulation class B class
    Weight 25g ~ 44g

    Anonymous login Caution Procedure Demonstration

    • Video Guide ： 2D／3D downloading procedure demonstration.
    • PDF file : 2D／3D downloading procedure demonstration.
    • Anonymous Login allows you to download 2D/3D files without an account.
    • Please confirm the accurate product model number before generating the 3D model files.
    • If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
    • When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
    UM PU tube

    Available color :Transparent(T), Black(B), Blue(BU), Transparent blue(CB), Orange(O), Green(G), Yellow(Y), Red(R), Operating pressure range:116 psi (0.8MPa)(65%RH at 20℃),Ambient temperature:-5~140℉(-15~60℃)(No freezing)


    TPU PU Tube
    Available color : Black(B), Blue(BU), Orange(O), Green(G), Yellow (Y), Transparent(T).

    UML PU Tube-coiling tube
    Medium:Air,Operating pressure range:Operating 0~100 psi (0~0.7 MPa), Ambient temperature:-5~140℉(-15~60℃) (No freezing).
