MVSV-220

Port size: 1/8, Medium: Air, low vacuum, Operating perssure range: -100kPa ~ 0.7 MPa, Reponse time : 20 ms, Voltage: DC24V
Bore No. 6A
Port size 1/8
No. of port 3
No. of position 2
Medium Air, low vacuum
Operating perssure range -101kPa ~ 0.7 MPa
Proof pressure 1 MPa (low vacuum: -101 kPa)
Effective orifice P→A: 5.2 mm2, R→A: 6.0 mm2
A→P: 6.2 mm2, A→R: 5.8 mm2
Reponse time 20 ms
Ambient temperature –5~+50°C (No freezing)
Voltage DC24V
Power consumption Standard: 7W
Power saving: Start:7W (※1) Power saving:3W
Available voltage range (※2) ±10%
Insulation class F class
Weight 164g (with bracket: 181)
Remark ※1. Power saving covert time 350ms.
※2. Energy saving DC24V: -5%~+10%.

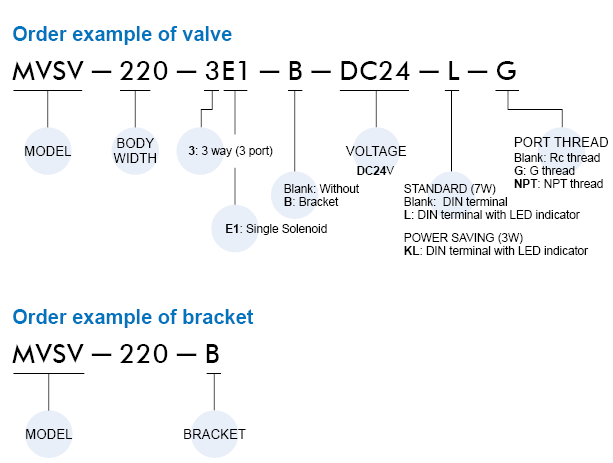

proimages/prod_orderno/E_MVSV-220.gif
