Multistage Vacuum Pump MZL112｜Nozzle dia.1.2 mm
Nozzle dia. 1.2 mm, Max. suction flow 100 l /min, Air consumption 63 l /min, 3 stage diffuser construction.
- Adopt 3-stage cartridge, enhancing vacuum flow and saving air consumption.

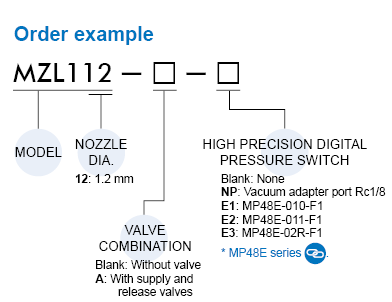

- Optional solenoid valve and vacuum pressure switch.
- Internal vacuum filter and vacuum silencer. The filter element is replaceable.
- A variety of installation directions are available.
| Nozzle dia. | 1.2 mm |
|---|---|
| Max. suction flow | 100 l/min |
| Max. operating pressure | 0.7 MPa |
| Supply pressure range | 0.2~0.5 MPa |
| Air consumption | 63 l/min |
| Max. vacuum pressure | －84 kPa |
| Operating temperature range | 5~50℃ |
| Standard supply pressure | 0.4 MPa |
| Noise | 70 decibel |
| Weight | 450 g |
