Multi connector system

Connector system
Connector system

MVB-300/460

Inquiry
DC 24V. 25 Pin D-sub connector (cable length 3m). Simple electric wire system.
  • DC24V.
  • 25 Pin D-sub connector (cable length 3m).
  • Simple electric wire system.

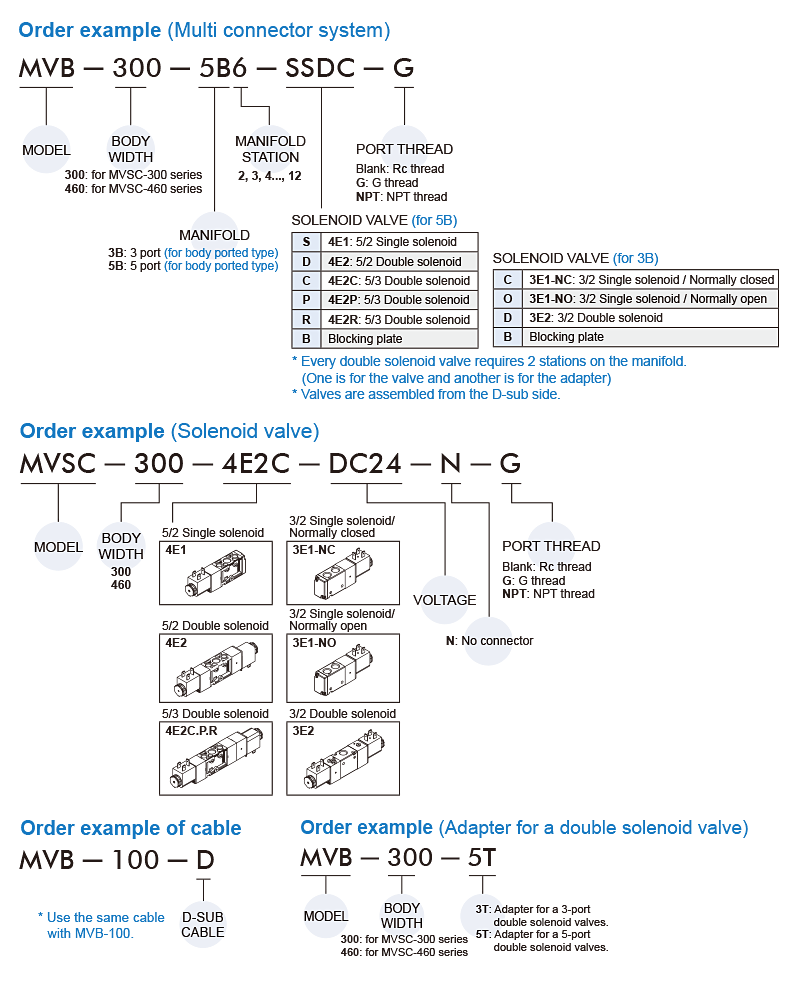

proimages/prod_orderno/E_MVB.gif

MVSC-300 Solenoid valve
Bore No. 10A, Port size: 3/8, No.of port: 3, 5, No.of position: 2, 3, Operating pressue: 0~0.8 MPa, Proof pressure: 1 MPa.

MVSC-460 Solenoid valve
Bore No. 15A, Port size: G1/2, No.of port: 3, 5, No.of position: 2, 3, Operating pressue: 0~0.8 MPa, Proof pressure: 1 MPa.
