Magnetically coupled rodless cylinder
Tube I.D. : φ10, 15, 20, 25, 32 mm, 50 % space saving. Magnetic transit design. Magnetic force transits the movement with piston side magnet and silder magnet. Stainless tube, light weighted and durable.
- 50 % space saving. Magnetic transit design.
- Magnetic force transits the movement with piston side magnet and slider magnet.
- Stainless tube, light weighted and durable.

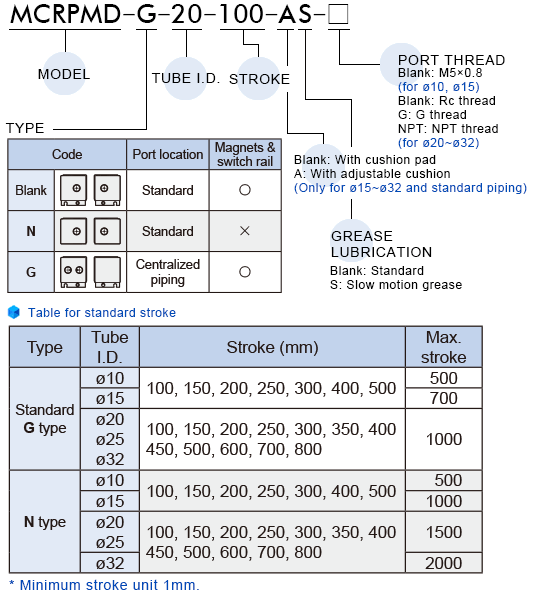

| Acting type | Double acting |
|---|---|
| Tube I.D.(mm) | φ10, φ15, φ20, φ25, φ32 |
| Port size | M5×0.8, Rc1/8 |
| Medium | Air |
| Operating pressure range | 0.18~0.7 MPa |
| Proof pressure | 1 MPa |
| Ambient Temperature | ＋5℃ ~ ＋60℃ |
| Lubrication | Without lubrication |
| Available speed range | Standard grease: 100~500 mm/sec (※1) Slow motion grease: 60~100 mm/sec (※1,2) |
| Holding force | φ10: 53.9N, φ15: 137N, φ20: 231N, φ25: 363N, φ20: 588N |
| Sensor Switch | RDFE, RCE, RCE1 |
| Remark | ※1. The cylinder must be connected to a speed controller and graduallyadjusted from fully closed to achieve the desired operating speed within the designed range. ※2. Between the speed range limit the actuator stroke must not exceed to 2m/minute. |
