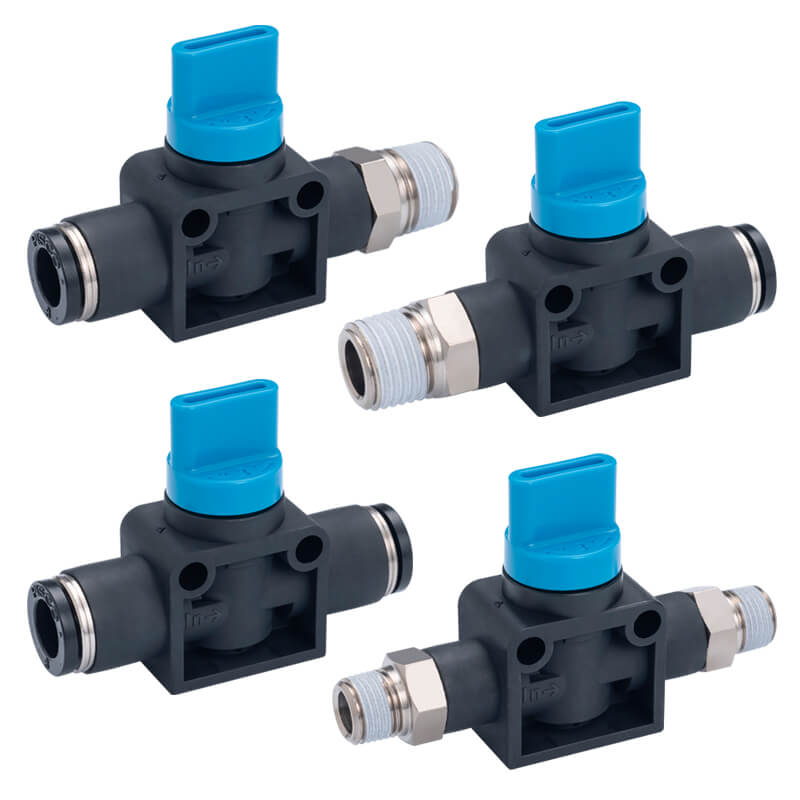

HV Hand valve | Up to 28% lighter than conventional products
Hand Valve turns on and off air pressure to pneumatic devices. Hand Valves come in four types for your applications. Fluid medium: Air. Max. operating pressure: 1.0 MPa
- Hand Valve turns on and off air pressure to pneumatic devices
- The three-directional control valve exhausts residual pressure when closed
Adjustment or maintenance can be carried out safely. - Hand Valves come in four types for your applications
| Fluid medium | Air |
|---|---|
| Max. operating pressure | 1.0 MPa |
| Max. vacuum | -100 kpa |
| Operating temp. range | 0~+60℃ (no freezing) |
CAD download
UB Polyurethane tube
Excelled in mechanical strength and oil resistance, this ester base polyurethane tube is best suitable for air piping in factories. The polyurethane tube, featuring excellent flexibility, helps compact piping requiring small bending radius. 10 tubing colors, Fluid medium : Air, water. Max. operating pressure: 1.0 MPa. Suitable for piping in cleanroom environments.
NA/NB Nylon tube
Nylon Tube, Fine Pressure, Wear, and Cold Resistance. NB Tube for Hot Water and Thermal Oil. Excellent Bending Fatigue Resistance. Stably Usable for Long Time. 12 Color Selections for NB Tube. 9 Color Selections for NA Tube. Fluid medium: Air, water, heat medium oil (condition) Max. operasting pressure: 2 MPa
UBT Dedicated Polyurethane Tube for Air
Polyurethane tube, 9 tubing colors, Fluid medium: Air. Max. operating pressure: 1.0 MPa. Featuring excellent flexibility, helps compact piping requiring small bending radius. Excelled in mechanical strength and oil resistance, this ester base polyurethane tube is best suitable for air piping in factories.
