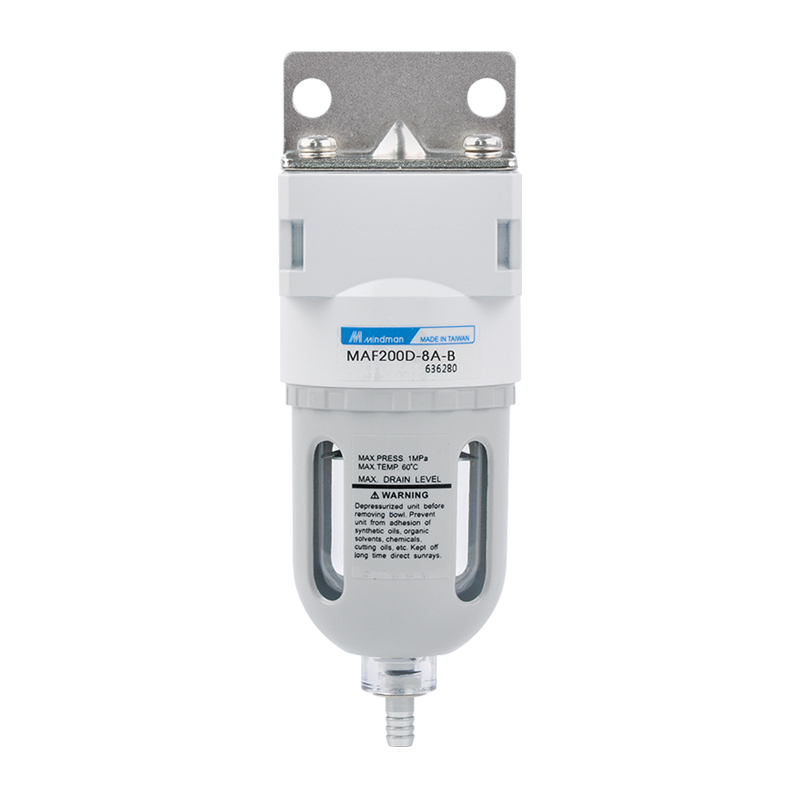

MAF200D/M

Port size : 1/8, 1/4, Operating pressure range : 0.05~1 MPa, Proof pressure : 1.5 MPa.
Bore No. 6A, 8A
Port size 1/8, 1/4
Medium Air
Operating perssure range (※) 0.05~1 MPa
Proof pressure 1.5 MPa
Ambient temperature -5~+60℃ (No freezing)
Filter element 0.3μm ,0.01μm
Drain capacity 6.5 cm3, 20 cm3 (MAF200L)
Weight 187 g, 155 g (MAF200L)
Remark ※ Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa.

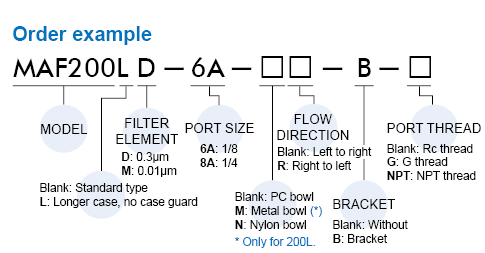

proimages/prod_orderno/E_MAF200DM.gif
