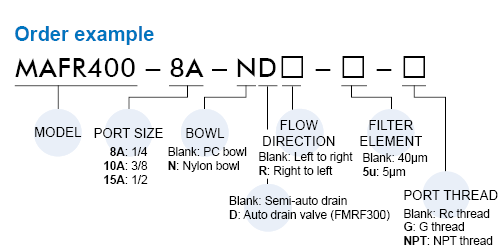

MAFR400 Air units｜With filtration, pressure regulation functions
Port size: 1/4, 3/8, 1/2, Operating pressure range:0.05~1 MPa, Proof pressure: 1.5 MPa.
| Bore No. | 8A, 10A, 15A |
|---|---|
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Operating pressure range (※) | 0.05~1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Filter element | Standard:40μm Option:5μm |
| Drain capacity | 100 cm3 |
| Standard attachment | Pressure gauge (PG-50), L type bracket |
| Weight | 1350 g |
| Remark | ※. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. |
