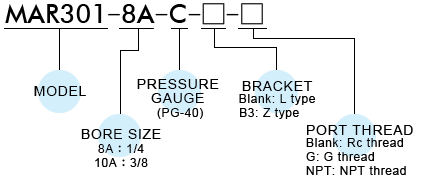

Pressure Regulator
Port size: 1/4, 3/8, Max. operating pressure: 1 MPa, Proof pressure: 1.5 MPa.
| Bore No. | 8A, 10A |
|---|---|
| Port size | 1/4, 3/8 |
| Medium | Air |
| Max. operating pressure | 1 MPa |
| Proof pressure | 1.5 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Attachment | Bracket |
| Option | Pressure gauge (PG-40) |
| Weight | 250g |
MP43 High precision digital pressure switch
7 user programmable units available.2 NPN / PNP open collector + analog output(1~5V or 4~20mA). 3-color digital LCD display.Repeatability ± 0.2% F.S. ± 1 digit. Max. 20% energy saving.
MP45 High precision digital pressure switch
IP65. 2 NPN / PNP open collector + analog output(1~5V or 4~20mA).2-color digital LCD display.Repeatability ± 0.2% F.S. ± 1 digit.
MP47 High precision digital pressure switch
IP40, 3-color digital LCD display. Main/Sub-Display, 4 digits 7 segment LCD display. Programmable pressure unit : kPa、MPa、kgf/cm²、bar、psi、inHg、mmHg. Dual LCD display allows setting value to be displayed. Key lock indicator. Power-save mode. Fine adjustment mode.
MP70 High precision digital pressure switch
Smart pressure sensor. Remote control. Real-time monitoring. RS-485 modbus RTU / ASCII.4 dight, 7 segment LCD display. IP40 enclosure. Programmable pressure unit : KPa, MPa, kgf/cm2,bar, psi, inHg, mmHg.
MPG-60 Digital pressure gauge
Pressure unit on display (MPa, kgf/cm2, psi, bar). Battery powered. Easy / fast read out with digital display. Back light option. IP65 enclosure, dust and splash-proof.
PG Pressure gauge
Port size: 1/16, 1/8, 1/4, Operating pressure range: 0~2 MPa.
UM PU tube
Available color :Transparent(T), Black(B), Blue(BU), Transparent blue(CB), Orange(O), Green(G), Yellow(Y), Red(R), Operating pressure range:116 psi (0.8MPa)(65%RH at 20℃),Ambient temperature:-5~140℉(-15~60℃)(No freezing)
