Vacuum Pressure Regulator
Port size: 1/4, 3/8, 1/2 ; Setting pressure range: -100 ~ -1.3 kPa ; Weight: 470 g.

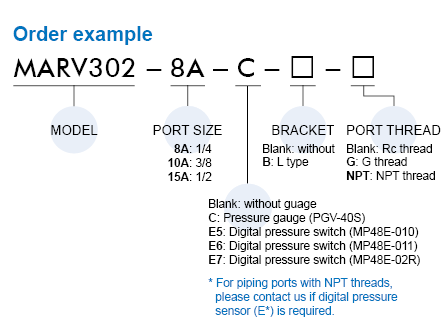

| Bore No. | 8A, 10A, 15A |
|---|---|
| Port size | 1/4, 3/8, 1/2 |
| Medium | Air |
| Proof pressure ※1 | 100 kPa |
| Setting pressure range ※2 | -100 ~ -1.3 kPa |
| Atmospheric intake consumption ※3 | 0.6 l/min(ANR) or less |
| Knob resolution | 0.13 kPa以下 |
| Ambient temperature | –5~+60°C (No freezing) |
| Max. flow rate ※4 | 300 l/min(ANR), 350 l/min(ANR) |
| Option | Pressure gauge (PGV-40S), L type bracket |
| Weight | 470 g |
| Remark | ※1. For vacuum regulator with pressure gauge, the gauge will be damaged if positive pressure is supplied. ※2. Use caution it varies depending on the pressure in vacuum pump side. ※3. Take air from atmosphere all the time. ※4. It is the flow rate when the secondary side is completely close and primary pressure is at 101.3kPa, and then adjusting secondary pressure at -80kPa, the secondary side is fully opened. |
