Dual-rod cylinder
Back
Home
Product Information
Discontinued Products
Air Cylinders
Dual-rod cylinder(MCDB)
PDF
MCDB
Comparison for the changes
Technical data
MCDB (Spanish)
MCDB
New
Discontinued Date : 2020.02.21
Q'ty :
Inquiry

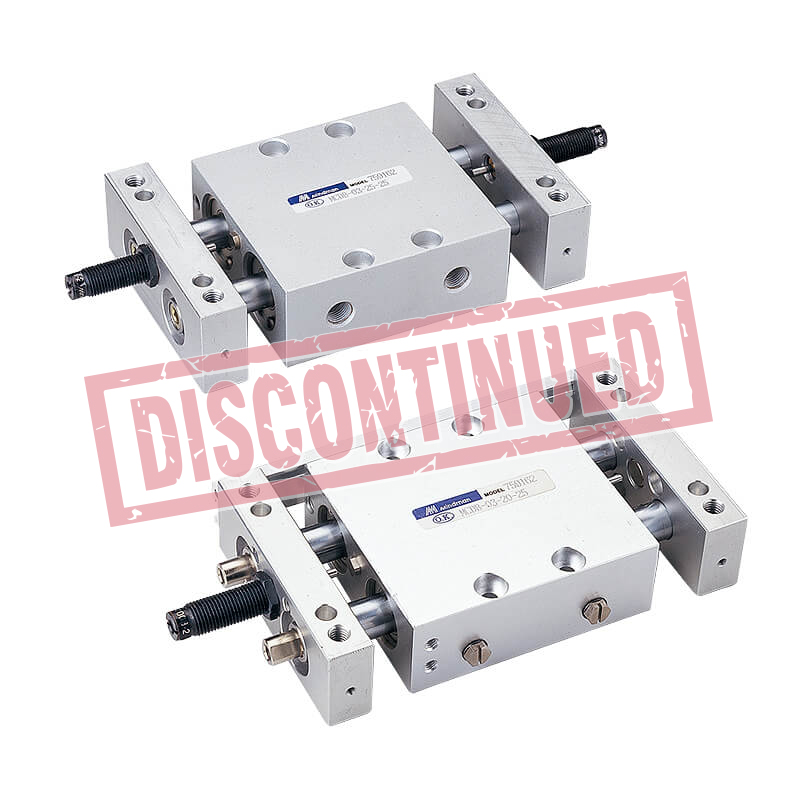

Tube I.D. φ 10, 16, 20, 25, 32 (mm). A thin and compact dual rod cylinder unit with high precision guiding for picking and placing.High Anti-roll accuracy & double thrust.
Features
Specification

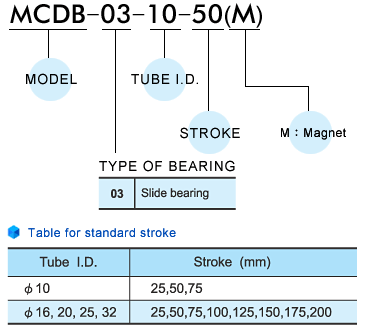

Order Example
Accessory
Compact in width and length with precision guidance.
High lateral loads can be applied on both slide and linear bearing unit.
Can be used as body or end plate sliding mechanism.
Can have shock absorbers fitted enabling absorption of high loads with low noise.
Acting type
Double acting
Tube I.D. (mm)
10, 16, 20, 25, 32
Port size
M5×0.8, Rc1/8
Medium
Air
Available speed range
50~500 mm/sec
Operating pressure range
0.1~1 MPa
Proof pressure
1.5 MPa
Stroke adjustable rang
Standard stoke ±2mm
Ambient temperature
-5~+60℃ (No freezing)
Lubrication
Not required
Cushion
Shock absorber
Sensor switch
RCD
MAC.MAD
Shock absorbers
MAC series:Miniature,Porous type,Long stroke ; MAD series:Adjustable,Porous adjustable type ; MACD series:Double cushion.
RCD.RDD
Sensor switch
Assembling style: MCDB, MCRB, MCRPMS.
