MCHA

Tube I.D. φ12, 16, 20, 25, 32 (mm), Two-jaw angular gripper (-10°~30°), Economical.
  • Two-jaw angular gripper.(-10°~30°)
  • Economical.
  • Magnetic as standard.
Acting type Double Acting / Single acting (N.O.)
Tube I.D. (mm) 12, 16, 20, 25, 32
Port size M3×0.5, M5×0.8
Medium Air
Operating pressure range 0.15~0.7 MPa
Ambient temperature -5~+60℃ (No freezing)
Max.operating frequency 180 Cycles/min
Lubrication Cylinder:Not required, Lever:Grease (Actuation at)
Max arm length (L) mm 30~85 (※)
Clamp / Release angle -10~30°
Theorem moment (M) Closed: 40×P~610×P, Open: 50×P~810×P (※)
Clamping force (F) F=M/L×0.85 (※)
Sensor switch RDE, RDE-D
Weight 53~525 g
Remark

※ L:Arm length (mm), M: Theorem moment (N.cm),

   F:Clamping force (N), P: Operating pressure (MPa).

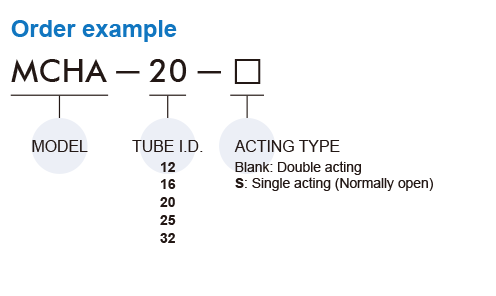

proimages/prod_orderno/E_MCHA.gif

Anonymous login Caution Procedure Demonstration

  • Video Guide : 2D/3D downloading procedure demonstration.
  • PDF file : 2D/3D downloading procedure demonstration.
  • Anonymous Login allows you to download 2D/3D files without an account.
  • Please confirm the accurate product model number before generating the 3D model files.
  • If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
  • When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
RCE Sensor switch
Assembling style: MCFA, MCGB, MCGD, MCGJ, MCG3, MCGS, MCDA, MCSH, MCSS, MCSF, MCRA, MCJA, MCJQ, MCJT, MCKB, MCKC, MCHA, MCHB, MCHC, MSB*, MSL*, RCE-Voltage range: 5~220V DC/AC , RDE / RDE-D-Voltage range: 10~28V DC , RNE,RPE-Voltage range: 5~30V DC.
