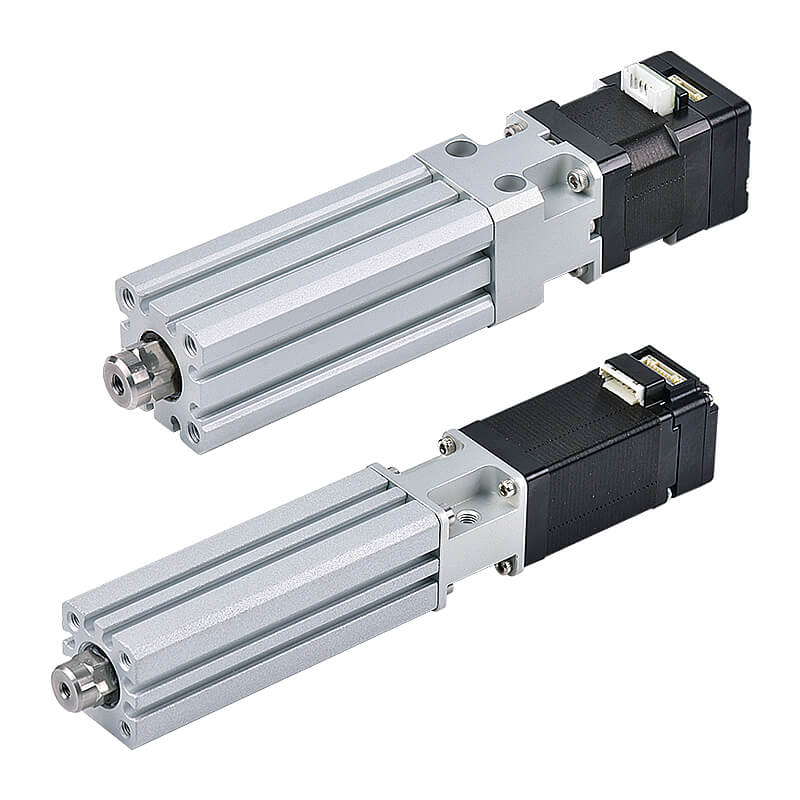

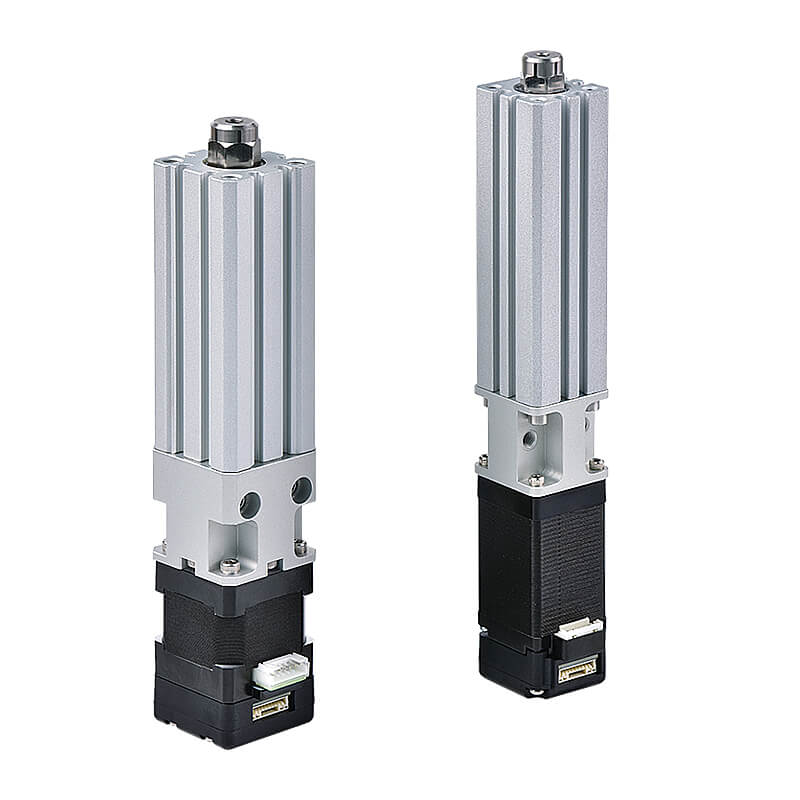

Compact Electric Actuator with Anti-Rotation Rod
Size : 16, 20, Non-rotating rod. Compact, Lightweight. Pre-lubricated before shipment. Good repeatability accuracy. Compatible with external magnetic sensors.
Industrial Automation & Smart Manufacturing, Robotics & Automation Systems, Semiconductor Manufacturing, Electronics Assembly, Automotive Manufacturing
Industrial Automation & Smart Manufacturing, Robotics & Automation Systems, Semiconductor Manufacturing, Electronics Assembly, Automotive Manufacturing
- Non-rotating hexagonal rod eliminates external anti-rotation mechanisms and improves positioning accuracy.
- Compact and lightweight design saves valuable installation space in automation equipment.
- High positioning repeatability of ±0.02 mm ensures precise and consistent linear motion.
- Ball screw drive provides smooth movement, high thrust, and long service life.
- Pre-lubricated before shipment to reduce maintenance requirements and simplify installation.
- Compatible with external magnetic sensors for accurate position detection and monitoring.
- Available in multiple stroke lengths and motor options to meet diverse application needs.
- Delivers high thrust up to 1,196 N for demanding industrial automation tasks.
- Suitable for environments without compressed air, reducing energy consumption and airborne contamination.
- Ideal for precision assembly, pick-and-place systems, semiconductor equipment, and smart factory automation.
| Size | 16, 20 |
|---|---|
| Positioning repeatability | ±0.02 mm |
| Lead | 1, 2 mm |
| Ball screw | ø4, ø6 |
| Stroke | 30 / 50 / 75 / 100 mm |
| Anti-rotation tolerance | ±0.7° |
| Sensor switch | RDC(V), RQC(V) |
| With step motor | □25, □28, □35 |
| Max. speed | ≤ 42 ~ ≤ 100 mm/s |
| Rated load | Horizontal(*2,3): 5, 12 kg Vertical(*2): 2, 5 kg |
| Max. thrust (*4) | 206 ~ 1196 N |
| Remark | *1. Do not apply radial loads or loads in directions other than the intended movement direction to the shaft. *2. The rated load capacity varies depending on the moving speed. Please refer to the Speed-Load Graph. *3. The rated horizontal load refers to a value when the shaft is free from radial and moment loads and is supported externally by a linear guide. *4. Thrust and operating speed are subject to variation depending on cable length, load, stroke, and mounting conditions. The thrust tolerance is ±20%. All specified values are based on 250 rpm motor operation. |
