Operating pressure range: 0.8 MPa,Proof pressure: 1 MPa.

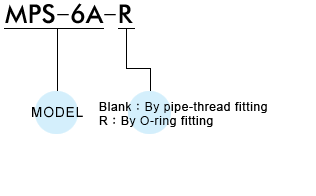

Fitting method R1/8 (for pipe-thread fitting) , O-ring:S4 (for O-ring fitting)
Operating pressure range 0.8 MPa
Proof pressure 1 MPa
Pressure setting range 0.1~0.7 MPa
Ambient temperature -5~+60℃ (No freezing)
Operation output Normal open
ON (Red led lighting up) above value
Sensor switch RCE2
Reed switch / Normal open
Voltage range:5~110V DC/AC
Max. Current:100mA
Weight 185g , 189g (R type)
