Rotary actuator
Tube I.D. φ 40, 63, 80 (mm). Rotation angle 90°, 180°. Adjustable rotation angle (±5°). High torque.
- High torque.
- Adjustable rotation angle (±5°).
- Magnetic as standard.

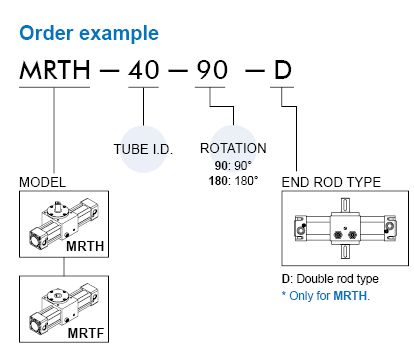

| Model | MRTF, MRTH, MRTH-D |
|---|---|
| Tube I.D. (mm) | 40, 63, 80 |
| Standard rotation | 90±5°, 180±5° |
| Rotating shaft dia. (mm) | 16, 24, 28 |
| Initial position of slot (mm) | See dimensional feature |
| Medium | Filtered air with or without lubrication |
| Operating pressure range | 0.13~0.7 MPa |
| Ambient temperature | －5℃~＋60℃ (No freezing) |
| Max. allowable axial thrust (kg) | 10, 12, 20 |
| Cushion angle | 74°, 75°, 80° |
| Max. allowable kinetic energy | 90° : 0.266J, 0.675J, 1.34J, 180°: 0.58J, 1.54J, 3.03J |
| Max. allowable radial trust (Fr) | 514.5N, 725.2N, 896.7N |
| Sensor switch | φ 40, 63 : LN65, φ 80 : LN03A |
Please log-in
- Register
- Login In
- Anonymous login Caution
- Error Report
Anonymous login Caution Procedure Demonstration
- Video Guide ： 2D／3D downloading procedure demonstration.
- PDF file : 2D／3D downloading procedure demonstration.
- Anonymous Login allows you to download 2D/3D files without an account.
- Please confirm the accurate product model number before generating the 3D model files.
- If there is any specific dimension or tolerance not referred in our catalog, please contact our sales department.
- When you use this CAD software to generate a file, please confirm that it matches the size and tolerance of the "PDF Catalog" on the website. If there is any discrepancy, please click the " Error Report" button above, and inform the model and wrong size, we will modify it as soon as possible, thank you for your assistance !
LN65 Sensor Switch
Assembling style: MRTH(F), Voltage range: 5~240V DC/AC.
