Flow control valve

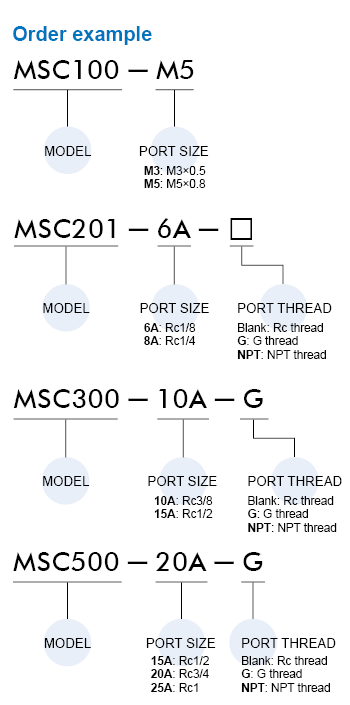

Model : MSC100 / 201 / 300 / 500 / 600, Medium : Air, Operating pressure range: 0~1 MPa, Proof pressure: 1.5 MPa.
| Bore No. | M3, M5, 6A, 8A, 10A, 15A, 20A, 25A |
|---|---|
| Port size | M3x0.5, M5x0.8, Rc1/8, 1/4, 3/8, 1/2, 3/4, 1 |
| Medium | Air |
| Operating pressure range | 0~1 MPa |
| Proof pressure | 1.5 MPa |
| Free flow(l/min) | 20~400 |
| Controlled flow(l/min) | 20~520 |
| Ambient temperature | －5~＋60℃ (No freezing) |
| Weight | 3g~767g |
| Remark | ※ Supply pressure: 0.5 MPa, Temperature: 20℃ ※ Do not use MSC series flow control valve as a shutoff valve where zero leakage is required, slight leakage is permitted for MSC series. |
