Shuttle valve｜Enables main/backup air source switching for continuous supply
Port size : 1/8, 1/4 : 1/8, 1/4, This valve has two input inlets (E1, E2) and can be controlled in dirfferent position. First activated position can get through to output signal (A).

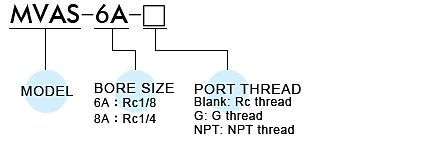

| Bore No. | 6A, 8A |
|---|---|
| Port size | Rc1/8, Rc1/4 |
| Medium | Air |
| Operating pressure range | 0.1~1 MPa |
| Proof pressure | 1.5 MPa |
| Effective orifice | 6A (11.5 mm2)，8A (30.5 mm2) |
| Ambient temperature | －15~＋60℃ (No freezing) |
| Weight | 43g, 119g |
