MVPM Precision flow proportional valve | low power & stainless steel construction
2/2 Way piston direct acting precision flow proportional valve, Direct acting orifice size from ø0.2 to 2 mm. Pressure up to 12 bar. Suited for dosing precisely gases in the medical and in the analytical field.
- Direct acting orifice size from ø0.2 to 2 mm.
- Pressure up to 12 bar.
- Suited for dosing precisely gases in the medical and in the analytical field.
- Gas analysis, Chromatography,
- Biotechnology: bioreactors, instrumentation
- Semiconductor facility
- Liquid flow: mainly instrumentation, dental equipment, coffee machines, blood analyser.

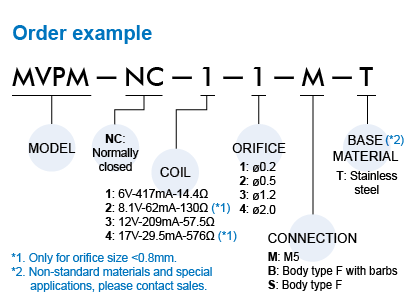

| Type of acting | Direct acting |
|---|---|
| Nb of ways / function | 2/2 NC - Proportional |
| Type of pneumatical connection | M5, Body type F, Body type F with barbs |
| Orifice size | ø0.2 ~ ø2mm |
| Flow @ 20°C (sl/min) | ≥ 3.8 ~ ≥ 70 |
| Power | 0.5, 2.5W |
| Materials in contact with media | Operator: Stainless steel Subbase: Stainless steel Seal: FPM |
| Mounting orientation | Indifferent |
| Media | Air, oxygen, neutral gases |
| Pressure range@ port 1 |
0~12 bar rel. |
| Internal leakage@ 20°C (ml/min) | ≤ 1 @ 0 ~ 12 bar rel. |
| External leakage@ 20°C (ml/min) | ≤ 1 @ 12 bar rel. |
| Storage temperature | –20~+70°C |
| Media temperature | 5~+50°C |
| Ambient temperature | 5~+50°C |
| Protection (DIN 40050) | IP51 |
| Duty cycle | 100% ED |
| Filter of front end | < 5µm |
| Weight | 60 ± 5g (depends on type of body) |
