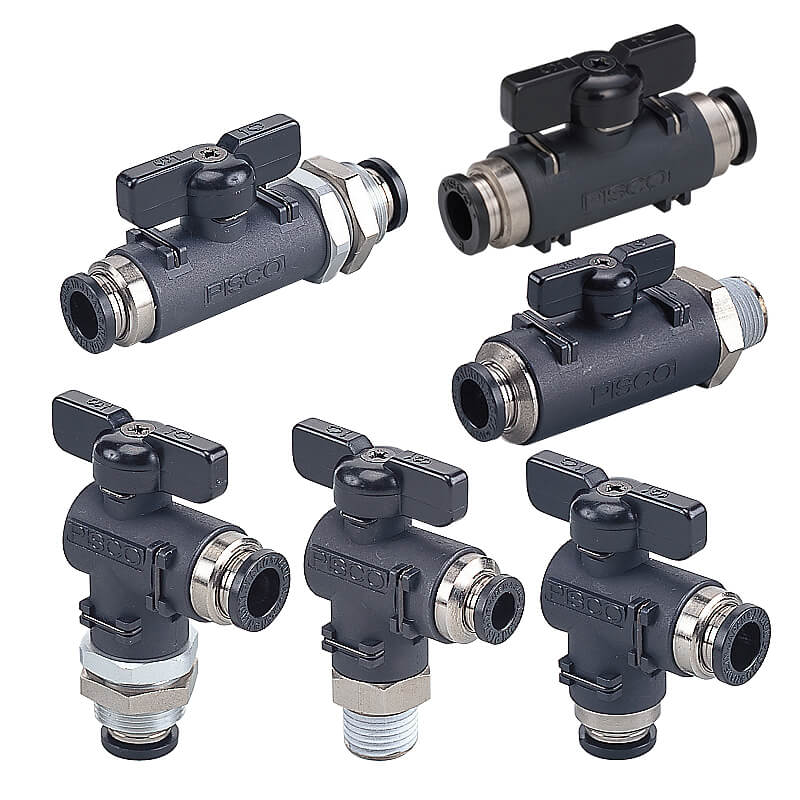

BV Ball Valve | Handle with scale for easy flow adjustment
Series: 10, 20, 60
Fluid medium: Air (10 series), Air, Water(20 & 60 series) (Conditional)
Fluid medium: Air (10 series), Air, Water(20 & 60 series) (Conditional)
10 series (mini)
- Easily adjustable lever with scale
The flow rate can be adjusted roughly by setting the angle of the lever. - There is only little flow loss thanks to the large orifice diameter
20,30 series
- It provides effective sectional area appropriate to the tube size
- PPS material is adopted for 20 & 60 series. Water can be used
| Series | 10 | 20 | 60 |
|---|---|---|---|
| Fluid | Air | Air, water (conditional) | |
| Max. operating pressure | 0.7MPa | 0.9MPa | |
| Max. vacuum | -100 kpa | ||
| Operating temp. range | 0~60℃ (no freezing) | ||
| Effective sectional area | 10mm2(Cv=0.45) | 20mm2(Cv=1.08) | 60mm2(Cv=3.25) |
CAD download (10 series)
